Raymond

RA 1-105-224-06

  • RA 1-105-224-06, Coil and Frame Assembly
$6.01 off

RA 1-105-224-06

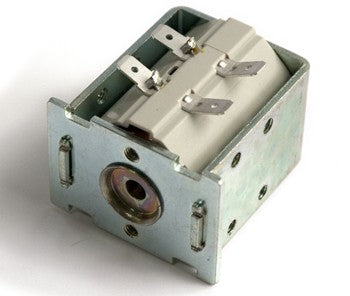

Coil and Frame Assembly

$63.66
$63.66 $69.67
In stock
⚠️ Compatibility Recommended Before Purchase
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.

Before ordering, confirm:
  • Equipment make and model
  • Serial number (if applicable)
  • Operating voltage
  • Rotation direction (CW / CCW)
  • Shaft diameter and length
  • Mounting pattern and flange type

If you’re unsure, contact us before purchasing with your equipment details.

Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.

Questions? Call +1-800-669-7554
8300 8400 8500 8600 Battery Connector Electric Lift Truck Parts Electrical frame Motor Controllers Raymond

Compatibility

Make Raymond
Model 8300, 8400, 8500, 8600, 8900

Reference Diagrams

Visit our diagram page for part references to popular models

Product Description

Coil and Frame Assembly

Compatibility: Fits pallet jacks made by Raymond, model 8300, 8400, 8500. SKU: RA 1-105-224-06

Frequently Asked Questions

Q: What is the RA 1-105-224-06 Coil and Frame Assembly?
A: The RA 1-105-224-06 is a complete coil and frame assembly used to rebuild or replace the electromagnet and mounting structure of the RA 1-105-224 main contactor. This assembly includes the energized coil winding and the insulating composite frame that houses the electrical components.

Q: Which Raymond pallet truck models use the RA 1-105-224-06?
A: The RA 1-105-224-06 fits Raymond 8300, 8400, and 8500 series electric pallet trucks. This assembly is compatible with the main contactor housings used across these three models. Verify your truck model against your parts manual before ordering.

Q: When should the coil and frame assembly be replaced?
A: Replace the coil and frame assembly when the contactor coil is open-circuited (no continuity reading), when the coil shows signs of burning or discoloration, when the contactor fails to energize despite correct 24VDC voltage at the coil terminals, or when mechanical damage to the frame allows moisture ingress into electrical components.

Q: Can the RA 1-105-224-06 be used with existing contact tips and armature hardware?
A: Yes, the coil and frame assembly is designed to integrate with existing contact assemblies and mechanical components if those parts remain undamaged. However, if contact surfaces show pitting or wear, replace contact tips during reassembly to ensure reliable switching performance.
