Raymond Contactor Kit for 8300, 8400, 8500, 8600, 111, 112, 113, 114 Series Elec
RA 1-105-224-07
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

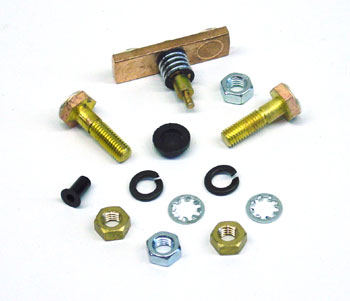

The RA 1-105-224-07 Contactor Kit is a direct replacement component for main contactor assemblies on Raymond 8300, 8400, and 8500 series electric pallet trucks. This kit restores core electrical switching reliability in lift truck control circuits, containing all essential components needed to rebuild and maintain peak performance in demanding warehouse and dock environments.
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 8300, 8400, 8500, 8600, 111, 112, 113, 114 |
| Part Number | RA 1-105-224-07 |
| Manufacturer Part Number | 1-105-224-07 |
| Compatible Equipment Models | Raymond 8300, 8400, 8500 |
| Application | Main contactor assembly - traction and lift motor circuits |
Electrical Specifications
| Electrical Rating | 24VDC coil and load circuit |
Additional Specifications
| Contact Material | Copper alloy rated for switching demands |
Frequently Asked Questions
Q: What models is the RA 1-105-224-07 contactor kit compatible with?
A: The RA 1-105-224-07 contactor kit is compatible with Raymond 8300, 8400, 8500, 8600, 111, 112, 113, and 114 series electric lift trucks. Confirm your truck model number on the nameplate before ordering.
Q: What are the benefits of using the RA 1-105-224-07 contactor kit?
A: This contactor kit provides a cost-effective solution for replacing worn components without needing to replace the entire assembly. It helps maintain electrical reliability and control circuit performance in Raymond electric lift trucks.
Q: When should I use the RA 1-105-224-07 contactor kit?
A: Use this contactor kit when you notice symptoms such as failure to respond to throttle input, arcing or burning in the main electrical compartment, contactor chatter, abnormal clicking sounds, or carbon buildup on contact surfaces.
Q: What materials are used in the RA 1-105-224-07 contactor kit?
A: The components in this contactor kit are made from durable materials designed to withstand the switching demands of traction and lift motor circuits. They are rated for 24VDC nominal coil voltage and 24VDC load circuit operation.
Q: How do I know if the RA 1-105-224-07 is the right replacement for my truck?
A: Verify your truck's model number on the nameplate and cross-reference it with the compatible models listed for this contactor kit. Ensure that the frame and mounting hardware are in good condition before proceeding with replacement.
