Ignition Switch for Raymond 8300, 8400, 8500, and 8600 Series Electric Lift Trucks
RA 1-150-391
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

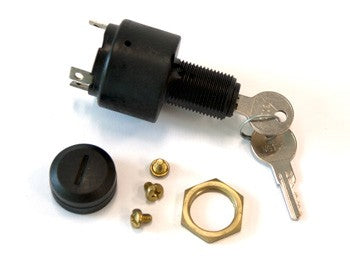

Raymond RA 1-150-391 is a 3-position panel-mounted ignition switch designed for electric lift truck applications, rated for 24VDC and 10A continuous duty, featuring a rotary actuator with removable dual-position key and high-impact polymer construction. OEM identification includes part numbers RA 1-150-391, RA1-150-391, and 1-150-391. No additional cross-reference or superseded numbers available.
Compatibility: Fits pallet jacks made by Raymond, model 8500. SKU: RA 1-150-391
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 8300, 8400, 8500, 8600 |
| Part Number | RA 1-150-391 |
| Manufacturer Part Number | RA1-150-391 |
| Equivalent Part Numbers | 1-150-391 |
| Compatibility | Fits pallet jacks made by Raymond, model 8500. |
Electrical Specifications
| Rated Voltage | Up to 24VDC |
| Rated Current | 10A continuous at 24VDC |
| Electrical Endurance | 20,000 cycles at full rated load |
Additional Specifications
| Connection Type | Tab terminals (blade connection 0.250 inch) |
| Housing Material | High-impact dielectric polymer |
| Mechanical Endurance | 100,000 cycles minimum |
| Description | Raymond RA 1-150-391 is a 3-position panel-mounted ignition switch designed for electric lift truck applications, rated for 24VDC and 10A continuous duty, featuring a rotary actuator with removable dual-position key and high-impact polymer construction. |
Frequently Asked Questions
Q: What equipment does the RA 1-150-391 ignition switch fit?
A: The RA 1-150-391 is designed for Raymond 8300, 8400, 8500, and 8600 series electric lift trucks. It is a replacement part engineered for use in these model lines.
Q: What materials are used in the housing and key?
A: The RA 1-150-391 features a high-impact polymer construction for the housing, providing durability in material handling environments. The removable key ensures secure equipment access control and anti-theft protection.
Q: What are the compatibility details for this ignition switch?
A: The RA 1-150-391 is compatible with Raymond 8300, 8400, 8500, and 8600 series electric lift trucks. It is a direct replacement part for these models.
Q: How does the RA 1-150-391 ignition switch operate?
A: The RA 1-150-391 is a 3-position rotary switch with a removable dual-position key and keyed actuator. This configuration provides flexible operator control for truck startup and operation sequences.
Q: Are there alternative part numbers for this switch?
A: The RA 1-150-391 is cross-referenced as RA1-150-391 and 1-150-391. No additional superseding or alternative part numbers are available.
Q: What is the mechanical duty cycle specification?
A: The RA 1-150-391 is designed for continuous duty operation in electric lift truck applications. The high-impact polymer housing and panel-mount design ensure stable performance across the typical service life of Raymond equipment.
