Main Harness Assembly for Raymond Electric Lift Truck
RA 1042977
Electric motors are model-, voltage-, rotation-, mounting-, shaft-, and sometimes serial-number specific. Installing an incompatible motor may result in equipment damage, electrical damage, or unsafe operation.
Before ordering, confirm:
- Equipment make and model
- Serial number (if applicable)
- Operating voltage
- Rotation direction (CW / CCW)
- Shaft diameter and length
- Mounting pattern and flange type
If you’re unsure, contact us before purchasing with your equipment details.
Non-Refundable Item: Motors are non-refundable. Please verify compatibility before purchasing.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

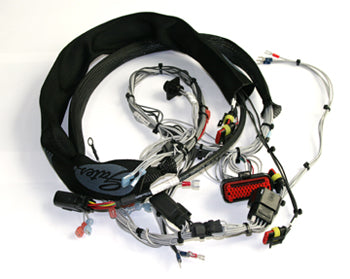

RA 1042977 is the main harness assembly for Raymond electric lift trucks, engineered for 24VDC chassis wiring and compatible with the 8300, 8400, and 8500 Series. Features stranded copper conductors with thermoplastic insulation, OEM-style connectors, and robust assembly for high-reliability industrial service.
Compatibility: Fits pallet jacks made by Raymond, model 8300, 8400, 8500. SKU: RA 1042977
Specifications
Part Numbers & Compatibility
| Make | Raymond |
| Model | 8300, 8400, 8500, 8600 |
| Part Number | RA 1042977 |
| Alternate Part Number | RA1042977 |
| Equipment Compatibility | Compatible with Raymond 8300, 8400, and 8500 Series |
| Compatibility | Fits pallet jacks made by Raymond, model 8300, 8400, 8500. |
Additional Specifications
| Description | RA 1042977 is the main harness assembly for Raymond electric lift trucks, engineered for 24VDC chassis wiring and compatible with the 8300, 8400, and 8500 Series. |
| Features | Features stranded copper conductors with thermoplastic insulation, OEM-style connectors, and robust assembly for high-reliability industrial service. |
Frequently Asked Questions
Q: What is RA 1042977 and what does it do?
A: RA 1042977 is the main harness assembly for Raymond electric lift trucks. It is engineered for 24VDC chassis wiring and handles power distribution and signal routing throughout the truck electrical system. This harness features stranded copper conductors with thermoplastic insulation and replacement-style connectors.
Q: Which Raymond models is RA 1042977 compatible with?
A: RA 1042977 fits Raymond electric lift trucks models 8300, 8400, 8500, and 8600. Verify your equipment model and electrical system voltage before ordering to ensure proper compatibility.
Q: What are the material and durability features of RA 1042977?
A: RA 1042977 is constructed with stranded copper conductors and thermoplastic insulation for durability in industrial environments. The harness is designed to withstand high-reliability service and maintain consistent performance.
Q: How do I know if RA 1042977 is the right replacement for my equipment?
A: RA 1042977 is designed as a direct replacement for harness assemblies in Raymond 8300, 8400, 8500, and 8600 models. Confirm your equipment year, serial number, and connector types match before ordering to ensure proper fitment and electrical compatibility.
Q: What symptoms suggest RA 1042977 harness needs replacement?
A: Signs of harness failure include intermittent electrical faults, motor cutouts during operation, loss of control functions, or visible damage to connectors and insulation. Inspect harness regularly for corrosion, cracked insulation, or corroded connectors in wet storage or high-vibration environments.
Q: How should RA 1042977 be maintained?
A: Periodically inspect connectors for corrosion, looseness, and insulation damage. Clean corroded connectors carefully and ensure all connections are tight. Replace the harness immediately if insulation is cracked, burned, or if connectors are severely corroded, as these conditions create electrical hazards and equipment failure.
