Product Description

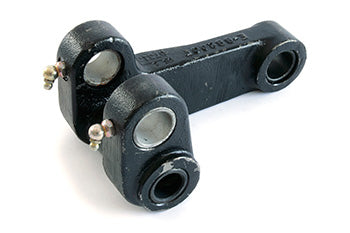

Bell Crank Subassembly L.H. (6,000 lbs.Cap)
Compatibility: Fits pallet jacks made by Raymond, model 8300, 8400, 8500. SKU: RA 1023730
Frequently Asked Questions
Q: What is the RA 1023730 bell crank subassembly?
A: The RA 1023730 is a left-hand bell crank subassembly rated for 6,000 pounds capacity. It transfers hydraulic or mechanical force to control lift operations in Raymond electric pallet trucks.
Q: Which Raymond pallet jack models use the RA 1023730 left-hand bell crank?
A: The RA 1023730 fits Raymond 8300, 8400, and 8500 series electric pallet trucks. Verify your model number on the equipment nameplate before ordering this left-hand component.
Q: What is the load capacity of the RA 1023730 bell crank?
A: The RA 1023730 is engineered for 6,000-pound capacity pallet trucks. Do not use this part in equipment rated for higher loads as it will fail prematurely.
Q: What is the difference between RA 1023730 and RA 1023731?
A: The RA 1023730 is a left-hand component while the RA 1023731 is the matching right-hand bell crank, also for 6,000-pound capacity. Both are required for proper bilateral load transfer in Raymond 8300, 8400, and 8500 trucks.
Q: What material is the RA 1023730 bell crank made from?
A: The RA 1023730 is fabricated from high-strength structural steel, hardened and heat-treated to withstand cyclic loading in pallet jack service.
Q: How can I verify if my pallet jack needs the RA 1023730 bell crank replacement?
A: Signs of bell crank failure include sluggish lift response, one side lifting slower than the other, grinding noises during lift, or visible cracks in the assembly. Compare your model and capacity rating to confirm the RA 1023730 is your correct part.
