Product Description

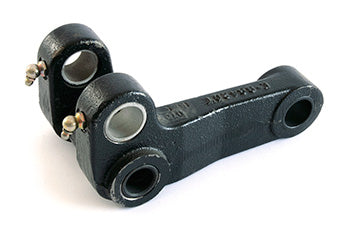

Raymond RA 1023731 Bell Crank Subassembly R.H., engineered for 6,000 lb capacity electric pallet trucks, model compatibility includes Raymond 8300, 8400, and 8500 series. Manufactured in high-strength steel for right side installation. Supersedes RA 1023730 and related series.
Compatibility: Fits pallet jacks made by Raymond, model 8300, 8400, 8500. SKU: RA 1023731
Specifications
Compatibility
| Compatible Equipment | Raymond 8300, 8400, 8500 electric pallet jack trucks |
Material & Construction
| Frame Material | High-strength structural steel |
Part Numbers
| OEM Part Number | RA 1023731 |
| Manufacturer Part Number | RA1023731 |
| Equivalent Part Number | 1023731 |
| Model Compatibility | Raymond 8300, 8400, 8500 series |
Frequently Asked Questions
Q: What is the RA 1023731 bell crank subassembly?
A: The RA 1023731 is a right-hand bell crank subassembly rated for 6,000 pounds capacity. It transfers force to control lift operations on the right side of Raymond electric pallet trucks.
Q: What Raymond models use the RA 1023731 right-hand bell crank?
A: The RA 1023731 fits Raymond 8300, 8400, and 8500 series electric pallet trucks. Confirm your equipment model matches before ordering.
Q: Is the RA 1023731 equivalent to any other part numbers?
A: The RA 1023731 is the primary OEM part number. Equivalent cross-references include 1023731. Always specify RA 1023731 when ordering to ensure you receive the correct assembly.
Q: What is the load capacity of the RA 1023731 bell crank?
A: The RA 1023731 is rated for 6,000-pound capacity trucks. For 8,000-pound capacity Raymond models, use the RA 1023732 instead.
Q: What material and construction is the RA 1023731 made from?
A: The RA 1023731 is constructed from high-strength structural steel, engineered to handle cyclic mechanical stress in 6,000-pound pallet truck operations.
Q: What is the difference between RA 1023731 and RA 1023732?
A: The RA 1023731 is rated for 6,000-pound capacity while the RA 1023732 is designed for 8,000-pound capacity trucks. Both are right-hand components for Raymond 8300, 8400, and 8500 models. Select based on your equipment capacity rating.
