Product Description

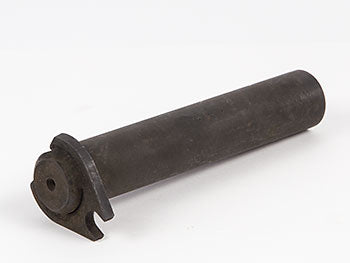

Raymond RA 1026383 Front Shaft Weldment engineered for Raymond 8300, 8400, and 8500 series electric pallet trucks. This structural steel welded assembly serves as the front shaft mounting structure in the frame and undercarriage assembly. Designed for use with Raymond load rollers and 6205 series ball bearings, this direct replacement component provides the structural integrity and durability needed for heavy-duty warehouse operations.
Specifications
Part Information
| Part Number | RA 1026383 |
| Compatible Models | Raymond 8300, Raymond 8400, Raymond 8500 |
Dimensional Specifications
| Mounting Pattern | Mounting orientation consistent with Raymond factory frame designs for 8300, 8400, and 8500 series |
Material & Construction
| Material Specification | Structural steel welded assembly |
| Compatible Components | Raymond load rollers, 6205 series ball bearings |
Frequently Asked Questions
Q: What is the RA 1026383 front shaft weldment used for?
A: The RA 1026383 is a structural steel welded assembly used in frame and undercarriage assembly on Raymond 8300, 8400, and 8500 series electric pallet trucks. It serves as the front shaft mounting structure for load rollers.
Q: Which Raymond models use the RA 1026383?
A: The RA 1026383 Front Shaft Weldment is engineered for Raymond 8300 series, Raymond 8400 series, and Raymond 8500 series electric pallet trucks.
Q: What material is the RA 1026383 made of?
A: The RA 1026383 is constructed from structural steel and features OEM-welded design. This material specification ensures durability and strength for heavy-duty warehouse applications.
Q: What components work with the RA 1026383 front shaft?
A: The RA 1026383 is compatible with Raymond load rollers and 6205 series ball bearings. These components interface with the weldment in the undercarriage assembly.
Q: Is the RA 1026383 a weldment or bolt-on component?
A: The RA 1026383 is a weldment, meaning it is a factory-welded structural steel assembly. The mounting orientation is consistent with Raymond OEM frame designs for 8300, 8400, and 8500 series trucks.
Q: Can the RA 1026383 be repaired or does it need replacement?
A: The RA 1026383 is a structural steel welded assembly. Damage to weldments typically requires replacement rather than field repair. This ensures structural integrity and compliance with Raymond OEM specifications.
