Product Description

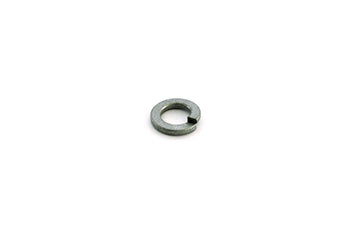

The Raymond RA 5-019-007 is a heat-treated high-carbon steel lock washer engineered to prevent fastener loosening in caster and axle assemblies on Raymond 8300, 8400, and 8500 electric pallet trucks. This direct replacement delivers reliable vibration resistance and superior load retention under continuous operational stress. Features SAE 1075 spring steel construction rated for 100% duty cycle. Cross-reference part numbers: 5019007 and SK-47220902SR.
Specifications
Material & Construction
| Steel Grade | SAE 1075 or equivalent high-strength spring steel |
| Heat Treatment | Heat-treated for mechanical lock washer function |
Part Numbers
| Part Number | RA 5-019-007 |
| Manufacturer Part Number | 5-019-007 |
| Cross-Reference Numbers | 5019007, SK-47220902SR |
Compatibility
| Compatible Equipment | Raymond 8300, 8400, 8500 electric pallet truck series |
Performance
| Duty Rating | Rated for 100% duty in caster and axle assembly applications |
| Application | Caster and axle fastener locking; prevents vibration-induced loosening |
Frequently Asked Questions
Q: What equipment is the RA 5-019-007 lock washer compatible with?
A: The RA 5-019-007 is designed for Raymond 8300, 8400, and 8500 electric pallet truck series. It is used in caster and axle assemblies on these models. Confirm your equipment model before ordering.
Q: What are the material specifications for the RA 5-019-007?
A: The RA 5-019-007 is manufactured from SAE 1075 or equivalent high-strength spring steel. It is heat-treated to deliver the mechanical properties required for lock washer function under continuous operational stress.
Q: What are the cross-reference part numbers for the RA 5-019-007?
A: Cross-reference numbers for the RA 5-019-007 include 5019007 and SK-47220902SR. These references can be used to verify compatibility when cross-checking with Raymond documentation or other parts databases.
Q: What is the duty rating for the RA 5-019-007 lock washer?
A: The RA 5-019-007 is rated for 100% duty in caster and axle assembly applications. It is designed to perform continuously under the vibration and load conditions typical of electric pallet truck operation.
Q: Why is the RA 5-019-007 used in caster and axle assemblies?
A: The RA 5-019-007 prevents fastener loosening in high-vibration areas. Caster and axle assemblies experience significant repeated stress during truck operation. The heat-treated high-carbon steel construction maintains tension and prevents catastrophic fastener failure.
Q: How does the RA 5-019-007 differ from a standard flat washer?
A: The RA 5-019-007 is a lock washer, not a flat washer. It features a split or serrated design that bites into fastener and material surfaces, preventing rotational loosening. Standard flat washers distribute load but do not provide locking action.
