Pivot Weldment for Raymond Electric Pallet Jack
RA 1016119
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

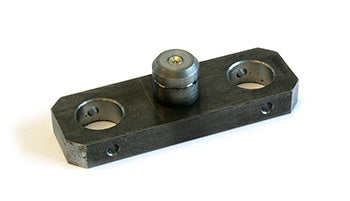

OEM Pivot Weldment (Tandem and Tandem Split), part number RA 1016119, for Raymond 8300, 8400, 8500 series electric pallet trucks. Heavy-duty welded steel construction for tandem load wheel support in frame undercarriage assemblies. Direct OEM replacement.
Compatibility: Fits pallet jacks made by Raymond, model 8300, 8400, 8500. SKU: RA 1016119
Specifications
Part Numbers & Compatibility
| Make | Raymond, Lift-Rite |
| Model | 8300, 8400, 8500 |
| Part Number | RA 1016119 |
| Manufacturer Part Number | RA 1016119 |
| Compatible Equipment Models | Raymond 8300, 8400, 8500 series electric pallet trucks |
| Compatibility | Fits pallet jacks made by Raymond, model 8300, 8400, 8500. |
Additional Specifications
| Description | OEM Pivot Weldment (Tandem and Tandem Split), part number RA 1016119, for Raymond 8300, 8400, 8500 series electric pallet trucks. Heavy-duty welded steel construction for tandem load wheel support in frame undercarriage assemblies. Direct OEM replacement. |
Frequently Asked Questions
Q: What equipment does the RA 1016119 pivot weldment fit?
A: The RA 1016119 is a replacement pivot weldment for Raymond electric pallet trucks in the 8300, 8400, and 8500 series. Verify your equipment model before ordering to confirm compatibility.
Q: What is the construction material of this pivot weldment?
A: The RA 1016119 features heavy-duty welded steel construction. It is engineered to support tandem and tandem split load wheel configurations in the frame undercarriage assembly, providing durable support for repeated material handling cycles.
Q: What is the function of this part in the pallet truck assembly?
A: The RA 1016119 pivot weldment serves as a load-bearing structural component that supports the tandem or tandem split load wheel system within the frame undercarriage. It enables proper weight distribution and load transfer during lift and tilt operations.
Q: Which makes and models is this part compatible with?
A: This part is compatible with Raymond electric pallet trucks in the 8300, 8400, and 8500 series.
Q: How do I know if this is the right replacement part for my equipment?
A: Check your equipment model and ensure it matches the compatible models listed. The RA 1016119 is designed to fit Raymond electric pallet trucks in the 8300, 8400, and 8500 series.
