Product Description

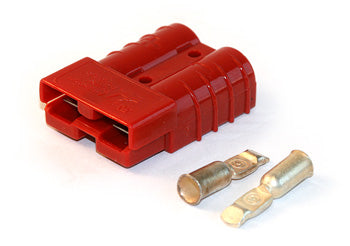

The AN 6331G1 is a red, genderless DC power connector housing and contacts assembly, rated for 50A continuous current and 600VDC, designed primarily for electric lift truck battery applications. Equipped with silver-plated copper alloy contacts and a crimp termination, this 2-position component offers rugged, high-impact thermoplastic construction.
Specifications
Electrical
| Current Rating | 50 Amps continuous |
| Voltage Rating | 600 VDC maximum |
| Connector Type | Genderless DC power connector |
Part Numbers
| Cross-Reference Part Numbers | Equivalent to Anderson Power Products 6331G1; No additional cross-reference part numbers available |
| OEM Part Number | 6331G1 |
| Manufacturer Part Number | 6331G1 |
Frequently Asked Questions
Q: What are the electrical ratings for the AN 6331G1?
A: The AN 6331G1 is rated for 50 Amps continuous current and 600 Volts DC maximum. It is a red, genderless DC power connector designed specifically for electric lift truck battery applications and low-voltage industrial power distribution.
Q: What materials and construction does the AN 6331G1 use?
A: The AN 6331G1 features a high-impact thermoplastic housing with silver-plated copper alloy contacts. The crimp termination design ensures secure, low-resistance connections. These materials provide durability and corrosion resistance in battery-powered material handling equipment.
Q: What is the pole configuration of the AN 6331G1?
A: The AN 6331G1 is a 2-position genderless connector with crimp termination. The genderless design allows flexible mating configurations common in electric pallet jack and battery charger applications.
Q: Which equipment types use the AN 6331G1 connector?
A: The AN 6331G1 is compatible with electric pallet jacks, battery chargers, and other 50A DC power systems requiring 600VDC rated connectors. It fits Crown, Toyota, Raymond, and similar OEM electric lift trucks. Verify voltage and amperage match your equipment before ordering.
Q: Why is the AN 6331G1 red, and does color indicate function?
A: The red housing is the standard Anderson SB50 color coding. While color can help with field identification and organization, always verify part numbers, voltage ratings, and amperage specifications to ensure correct connector selection for your application.
