Product Description

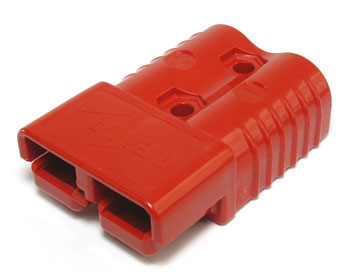

RED HOUSING 175 AMP
Specifications
Physical Specifications
| Amperage Rating | 175 amps |
| Housing Color | Red |
| Material | Thermoplastic resin, non-conductive |
| System Voltage | 24V DC |
| Connection Type | Battery to motor power interface |
| Finish | Molded, color-coded |
Compatibility
| Application | Electric pallet jacks and lift trucks |
| Compatible Variant | YL 150026404 (yellow, same 175A rating) |
Frequently Asked Questions
Q: What is the amperage rating of the YL 150026405 power housing?
A: The YL 150026405 red housing is rated for 175 amps. This housing functions as the primary power interface for battery and drive motor connections on compatible Yale electric lift trucks.
Q: Is the YL 150026405 interchangeable with the YL 150026404?
A: Both housings carry the same 175 amp rating and specifications. The primary difference is the color code: YL 150026404 is yellow and YL 150026405 is red. Color designation may indicate wiring configuration or electrical circuit purpose on specific equipment models. Verify your truck documentation before substituting.
Q: Can I use the YL 150026405 to replace a 350 amp housing?
A: No. The YL 150026405 is limited to 175 amp applications. Installing it on 350 amp equipment will cause thermal damage, electrical failure, and safety hazards. Always match the part to the correct amperage specification.
Q: What is the housing material and construction of the YL 150026405?
A: The YL 150026405 uses thermoplastic resin construction with molded non-conductive finish in red color. This material provides electrical safety and mechanical durability in indoor material handling applications.
Q: What signs indicate the YL 150026405 needs replacement?
A: Replace the housing if you observe cracks, visible burn marks, warping, discoloration beyond normal fade, loose connector terminals, or corrosion inside the cavity. Any of these symptoms indicates internal or external electrical damage.
