Product Description

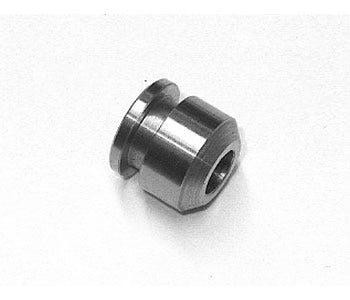

RELEASE PIN GUIDE
Specifications
Product Overview
| Product Type | Release Pin Guide |
Physical Specifications
| Material | Cast Iron or Ductile Iron |
| Function | Aligns and stabilizes release pin mechanism; prevents binding and misalignment |
| Wear Resistance | High durability under repeated pressure and friction |
| Typical Service Life | 3-5 years under normal warehouse use |
| Failure Indicators | Descent control sticking, jamming, excessive lever force required, unexpected fork drop, visible pin looseness |
Compatibility
| Application | Manual Pallet Jacks - Fork Descent Control |
Frequently Asked Questions
Q: What does the release pin guide do on a manual pallet jack?
A: The release pin guide aligns and stabilizes the release pin mechanism that locks and unlocks the fork descent control. It keeps the pin centered in the body casting to prevent binding or misalignment during normal operation.
Q: Which pallet jack models use SKU 40493?
A: This release pin guide fits standard manual pallet jacks from Crown, Toyota, Raymond, and Yale. Verify your jack model and serial range against the part drawing before ordering to confirm compatibility.
Q: What material is this release pin guide made from?
A: This guide is constructed from cast iron or ductile iron to withstand repeated pressure and friction from the release pin mechanism. The material provides wear resistance and structural rigidity.
Q: What are common failure symptoms for this part?
A: A worn or misaligned release pin guide causes the descent control to stick, jam, or require excessive force to operate. You may also notice the forks drop unexpectedly when the lever is released, or the pin becomes visibly loose in its bore.
Q: How long does this release pin guide typically last?
A: In normal warehouse use, this guide lasts 3 to 5 years. Heavy use, inadequate lubrication, or corrosive environments accelerate wear. Replace it when the release mechanism becomes unreliable or unsafe.
