Product Description

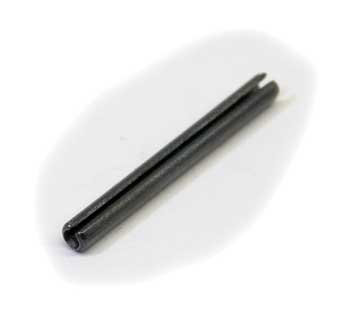

Roll pin for manual pallet jacks, 1.18 inches in length and 0.20 inches in diameter, manufactured from spring steel. Designed for secure retention of pivot and push rod axles in load roller brackets. No cross-reference part numbers available for SKU 1009487.
Specifications
Material & Construction
| Material Specification | Spring steel |
| Finish/Coating | Plain oil finish |
Frequently Asked Questions
Q: What are the exact dimensions and material of SKU 1009487?
A: SKU 1009487 is a spring steel roll pin with the following specifications: length 1.18 inches, diameter 0.20 inches, plain oil finish. Spring steel construction provides tensile strength and elastic recovery for secure axle retention.
Q: What is the purpose of part 1009487 on a manual pallet jack?
A: SKU 1009487 is designed for secure retention of pivot and push rod axles within load roller brackets on manual pallet jacks. The pin prevents axle separation during tilting, steering, and load handling operations.
Q: Which manual pallet jack brands and models use the 1009487 roll pin?
A: SKU 1009487 is compatible with manual pallet jacks from Crown, Toyota, Raymond, Yale, and similar manufacturers. Match the pin dimensions (1.18 inch x 0.20 inch) to your load roller bracket specifications to confirm fitment.
Q: How does the 0.20 inch diameter compare to other roll pins?
A: The 0.20 inch diameter of SKU 1009487 fits standard load roller bracket axle holes on most manual pallet jacks. Verify your bracket hole size before ordering. Incorrect diameter will result in loose fit or inability to insert the pin.
Q: Does the 1.18 inch length work for all pivot axle applications?
A: SKU 1009487 at 1.18 inches is designed for standard pivot and push rod axle applications on load roller brackets. Measure your axle bore depth to confirm the length does not exceed bracket thickness. Using incorrect length may cause bracket damage or pin protrusion.
Q: Are there cross-reference or equivalent part numbers for 1009487?
A: No cross-reference part numbers are documented for SKU 1009487. Use the exact specifications (1.18 inch length, 0.20 inch diameter, spring steel) when comparing to other suppliers or OEM part lists.
