Product Description

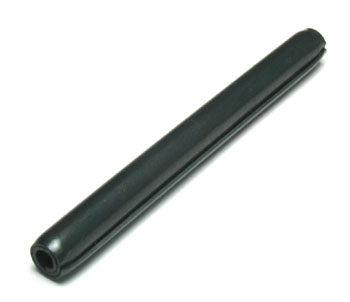

High-strength spiral roll pin, OEM part number 14J001832, manufactured from hardened SAE 1070-1090 spring steel with 1.18 inch length and 0.20 inch outside diameter. Designed for electric lift truck load-bearing linkages. Direct replacement for Clark and Total Source roll pin applications.
Specifications
Material & Construction
| Hardness | Rockwell C44 – C51 |
| Material Specification | SAE 1070-1090 high carbon spring steel |
Part Numbers
| OEM Part Number | 14J001832 |
| Manufacturer Part Number | 14J001832 |
| Cross-Reference Part Numbers | Clark 14J001832; Total Source 14J001832 |
| Equivalent/Interchange Part Numbers | Total Source 14J001832 |
Frequently Asked Questions
Q: What material is the 14J001832 roll pin made from?
A: The 14J001832 is manufactured from hardened SAE 1070-1090 high carbon spring steel with a Rockwell hardness of C44 to C51, providing high strength for load-bearing linkages.
Q: What are the dimensions of the 14J001832 spiral roll pin?
A: The 14J001832 has a length of 1.18 inches and an outside diameter of 0.20 inch. These dimensions make it a direct replacement for Clark and Total Source applications.
Q: Which electric lift truck models use the 14J001832 roll pin?
A: The 14J001832 is a direct replacement for Clark and Total Source roll pin applications in electric lift truck load-bearing linkages. Cross-reference with your equipment documentation to confirm fitment.
Q: Why is the 14J001832 designed as a spiral roll pin?
A: The spiral design provides consistent radial force and improved retention compared to standard slotted roll pins. The high carbon spring steel composition maintains its grip over repeated assembly and disassembly cycles in lift truck applications.
