Product Description

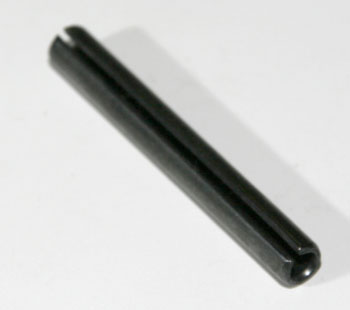

ROLL PIN
Specifications
Product Overview
| Part Number | 1JM06050 |
| Product Type | Roll Pin (Spring Pin) |
Physical Specifications
| Material | Spring Steel |
| Surface Treatment | Hardened |
| Standard Diameter Options | 3/8 inch (9.5mm) or 10mm |
| Corrosion Resistance | Moderate - suitable for indoor use; inspect regularly in wet conditions |
| Load Capability | Compression and shear resistant |
Compatibility
| Applications | Mast pivots, carriage pin assemblies, load wheel attachments, linkage assemblies |
| Compatible Equipment Type | Electric lift trucks, electric pallet jacks, electric stackers, order pickers |
Frequently Asked Questions
Q: What is the 1JM06050 roll pin and what electric lift truck models does it fit?
A: The 1JM06050 is a cylindrical roll pin fastener used in electric lift truck assemblies. This pin is compatible with electric pallet jacks, electric stackers, and electric order pickers from Crown, Toyota, Raymond, Yale, and Jungheinrich. Verify pin diameter and length match your equipment before ordering. Cross-reference your truck model and assembly diagram.
Q: What are the specifications and dimensions of the 1JM06050 roll pin?
A: The 1JM06050 is a spring steel roll pin with specific diameter and length measurements for pivot pin applications. Standard specifications include 3/8 inch or 10mm diameter with varying lengths depending on assembly. Confirm exact dimensions and tolerance class match your equipment to ensure secure fit in pin holes without excessive play or binding.
Q: What material is the 1JM06050 roll pin made from and how durable is it?
A: The 1JM06050 is manufactured from spring steel with a hardened surface to resist compression and shear loads from mast pivots, carriage pins, and load wheel assemblies. Material provides moderate corrosion resistance for indoor use. In wet or outdoor conditions, inspect pins regularly for rust or surface degradation that can weaken shear strength.
Q: When should the 1JM06050 roll pin be replaced?
A: Replace the 1JM06050 if the pin bends, fractures, or develops stress cracks. Loose or corroded pins cause excessive play in mast or carriage movement, creating safety hazards and accelerating wear on connected components. Inspect during routine maintenance; a broken pin can cause sudden equipment failure and load instability.
Q: Are there alternative or cross-referenced part numbers for the 1JM06050?
A: The 1JM06050 may have equivalent part numbers from different suppliers. Always verify pin diameter, length, and spring steel grade against original specifications. Incorrect pin sizing can cause assembly misalignment, bearing damage, or pivot failure. Maintain documentation of your truck model and assembly to ensure accurate replacement parts.
