Product Description

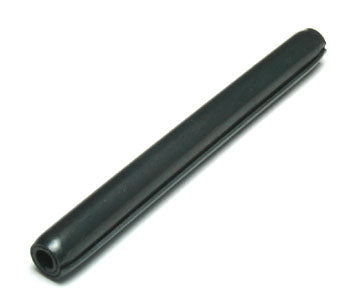

ROLL PIN
Specifications
Product Overview
| Part Number | 56409100 |
| Product Type | Roll Pin / Hollow Pin Fastener |
Physical Specifications
| Material | Spring Steel |
| Finish | Zinc-Plated |
| Function | Axle and linkage retention in electric lift truck assemblies |
| Compatibility | Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, Clark, Mitsubishi, CAT, BT, Nichiyu electric lift trucks |
| Durability | Corrosion-resistant zinc coating for warehouse and outdoor use |
Compatibility
| Applications | Drive mechanisms, steering assemblies, load-bearing structures, suspension linkages |
Frequently Asked Questions
Q: What is a roll pin and what role does the 56409100 play in electric lift trucks?
A: A roll pin is a hollow cylindrical fastener that holds axle assemblies, linkages, and structural components in fixed positions. The 56409100 roll pin is a precision component used in electric lift truck drive mechanisms, steering assemblies, or load bearing structures.
Q: Which electric lift truck brands and models use the 56409100 roll pin?
A: This roll pin is compatible with electric lift trucks from Crown, Toyota, Raymond, Yale, Hyster, Jungheinrich, Linde, Clark, Mitsubishi, CAT, and BT. Verify your truck model and assembly location to confirm the correct bore diameter and length before ordering.
Q: What are the specifications for the 56409100 roll pin?
A: The 56409100 roll pin has specific diameter, length, and wall thickness specifications matching your electric lift truck assembly requirements. Confirm the bore diameter where this pin fits to ensure correct selection and proper retention.
Q: What happens when a roll pin fails or becomes loose?
A: A failing roll pin allows axles, linkages, or load bearing components to shift position, causing misalignment, excessive wear, loss of control, or component separation. This poses safety risks and requires immediate replacement before truck operation.
Q: What material is the 56409100 roll pin made from?
A: The 56409100 is manufactured from spring steel with a hardened, zinc-plated finish. The spring property provides slight elasticity for retention, while the zinc coating protects against corrosion in warehouse and outdoor environments.
