Product Description

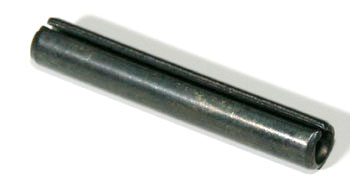

ROLL PIN
Frequently Asked Questions
Q: What is the material and finish of the 800018007 roll pin?
A: The 800018007 roll pin is made from high-strength alloy spring steel with stainless steel plating. This premium finish provides maximum corrosion resistance for extended service life.
Q: What are the exact dimensions of the 800018007 roll pin?
A: The 800018007 measures 5/16 inch in diameter by 1.75 inches in length. This size is used in heavy-duty load-bearing applications on larger electric lift truck models. Confirm bore specifications before purchasing.
Q: Which electric lift truck applications require the 800018007 roll pin?
A: The 800018007 is designed for primary structural joints on large-capacity electric lift trucks from Clark, BT, CAT, and Mitsubishi. Typical applications include mast base supports and main carriage assemblies.
Q: What shear load can the 800018007 roll pin withstand?
A: The 800018007 is rated for heavy-duty shear loads up to 4500 pounds. Verify this matches your equipment load requirements. Exceeding this rating will cause premature pin failure and potential equipment damage.
Q: Is the 800018007 suitable for cold storage and wet environments?
A: Yes. The stainless steel plating on the 800018007 makes it ideal for cold storage, wet floor, and outdoor material handling operations. This pin will resist rust and corrosion far longer than standard zinc-plated alternatives in harsh conditions.
Q: How often should the 800018007 be inspected and replaced?
A: Inspect the 800018007 every 1500 operating hours for signs of corrosion, stress cracking, or reduced spring tension. Replace after 3500 to 4500 operating hours or whenever surface damage is visible. Always use a new pin; do not reuse.
