Product Description

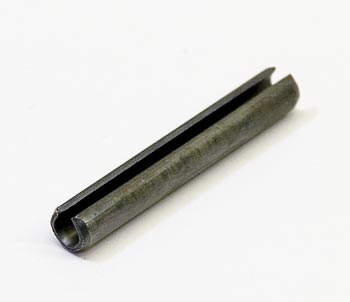

ROLL PIN
Specifications
Physical Specifications
| Diameter | 5/16 inch |
| Length | 1.5 inch |
| Material | Hardened Spring Steel |
| Construction Type | Hollow tube with split design |
| Shear Load Capacity | Approximately 850 lbs |
| Function | Retaining fastener and shear pin |
Compatibility
| Application | Wheel hubs, handle pivots, load arm connections |
| Compatible Equipment | Manual pallet jacks |
Frequently Asked Questions
Q: What is the purpose of the DS237269 roll pin in manual pallet jacks?
A: The DS237269 is a spring steel roll pin used as a shear pin or retaining fastener in manual pallet jack assemblies. It typically secures wheel hubs, handle pivots, or load arm connections and is designed to shear under overload conditions to protect equipment from damage.
Q: What are the specifications for the DS237269 roll pin?
A: The DS237269 is a 5/16 inch diameter by 1.5 inch length roll pin manufactured from hardened spring steel. Shear load capacity is approximately 850 lbs. The pin has a hollow tube construction with split design for secure gripping in drilled holes.
Q: Which manual pallet jack brands use the DS237269?
A: The DS237269 is compatible with manual pallet jacks from Crown, Toyota, Raymond, Yale, and Hyster. Cross-reference your pallet jack serial number to confirm the pin diameter and shear rating match your equipment specifications.
Q: How can you tell if the DS237269 roll pin needs replacement?
A: Replace the DS237269 if you notice loose wheel play, clicking sounds during operation, or visible corrosion on the pin. If the pin has sheared due to overload, inspect the connected component for damage before reinstalling a new pin.
Q: Is the DS237269 available as a spare or must it be replaced as an assembly?
A: The DS237269 is sold as an individual roll pin and is commonly stocked as a replacement spare. Ordering multiple pins at once is recommended for field maintenance kits, as roll pins are low-cost wear items that fail periodically under normal use.
