Product Description

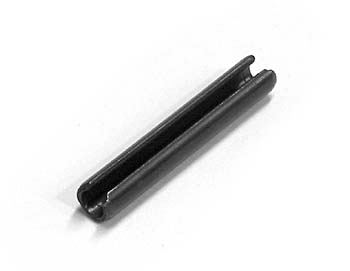

OEM Jet spring pin (JT PT2036-1-7) for Jet brand manual pallet jacks, PTW series; slotted spring pin manufactured from high carbon steel with black oxide finish, intended for linkage assembly retention. Nominal diameter 5/16 inch, length 1.00 inch. Manufacturer part number JT9-PT2036-1-7. No cross-reference equivalents available.
Compatibility: Fits pallet jacks made by Jet, model PTW. SKU: JT PT2036-1-7
Specifications
Material & Construction
| Material Specification | High carbon steel |
Mechanical Specifications
| Double Shear Strength | Approximate minimum: 10,000 lbf |
Part Numbers & Compatibility
| Manufacturer Part Number | JT PT2036-1-7 |
| OEM Part Number | JT9-PT2036-1-7 |
Frequently Asked Questions
Q: What is the JT PT2036-1-7 spring pin used for?
A: The JT PT2036-1-7 is an OEM slotted spring pin (also called a roll pin) for Jet PTW series pallet jacks. It retains linkage assembly components during manual actuation, preventing disassembly of the handle-to-pump mechanical connection under operational stress.
Q: What are the exact dimensions of the JT PT2036-1-7?
A: The JT PT2036-1-7 has a nominal diameter of 5/16 inch and a length of 1.00 inch. It is manufactured from high carbon steel with a black oxide finish. These dimensions are precise for Jet PTW geometry. Confirm hole diameter before ordering as substituting an over-sized or under-sized pin will fail.
Q: What is the shear strength rating of the JT PT2036-1-7?
A: The JT PT2036-1-7 has an approximate minimum double shear strength of 10,000 lbf. This strength rating is sufficient for the mechanical linkage forces generated during manual pallet jack lowering operations. Never substitute with a pin of lower shear rating.
Q: Can I use the JT PT2036-1-7 on other Jet jack models or different brands?
A: The JT PT2036-1-7 is designed specifically for Jet PTW series pallet jacks. No cross-reference or interchangeable part numbers exist. Other Jet models and other brands use different pin diameters and lengths. Measure your hole before ordering to avoid fitment issues.
Q: How do I know if the JT PT2036-1-7 is failing?
A: If the linkage assembly moves or rattles independently of the handle, or if the lever feels loose or disconnected during lowering operation, the pin may be bent, broken, or falling out. A failed pin will prevent controlled valve actuation and creates a safety hazard. Inspect and replace immediately.
Q: What finish does the JT PT2036-1-7 have?
A: The JT PT2036-1-7 is finished in black oxide. This coating provides corrosion resistance in damp warehouse and outdoor storage conditions. Do not substitute a bare steel pin as it will rust and seize in the hole.
