Product Description

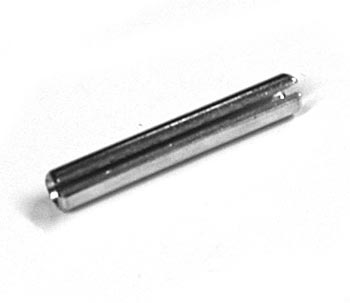

Split Pin LF PL-20269 by Lift-Rite is an OEM-grade carbon steel retaining pin for undercarriage and assembly use on Titan Series, LF50, L50M, L50MU, LR2055, and compatible manual pallet truck models. Nominal size 3/16 inch diameter x 1.25 inch length; supersedes and cross-references PM20269, LR20269, PL20269. Designed as frame and lever retainer with clearance fit.
Compatibility: Fits pallet jacks made by Lift-Rite, model LF50. SKU: LF PL-20269
Specifications
Material & Construction
| Material Specification | Carbon steel, to SAE 1010 minimum |
| Finish | Uncoated carbon steel |
Part Numbers
| OEM Part Number | LF PL-20269 |
| Manufacturer Part Number | PL-20269 |
| Cross-Reference Part Numbers | PM20269, PL20269, LR20269 |
| Equivalent / Interchange Part Numbers | PM20269, LR20269 |
Frequently Asked Questions
Q: What is the purpose of the LF PL-20269 split pin?
A: The LF PL-20269 is an OEM-grade carbon steel retaining pin used for undercarriage and assembly applications. This pin functions as a frame and lever retainer with clearance fit design, securing critical pivot and attachment points on Lift-Rite manual pallet trucks.
Q: Which Lift-Rite pallet jack models use the LF PL-20269 split pin?
A: The LF PL-20269 is compatible with Lift-Rite Titan Series, LF50, L50M, L50MU, and LR2055 manual pallet truck models. This pin is used in undercarriage retainer locations where frame and lever retention is required.
Q: What are the dimensions and material specifications for LF PL-20269?
A: LF PL-20269 has a nominal size of 3/16 inch diameter by 1.25 inch length. The material is carbon steel to SAE 1010 minimum with uncoated (natural) finish. Clearance fit design allows for smooth insertion and removal during maintenance.
Q: What cross-reference and superseded part numbers apply to LF PL-20269?
A: LF PL-20269 cross-references as PM20269, LR20269, and PL20269. These are equivalent interchange part numbers. The OEM part number is LF PL-20269 with manufacturer number PL-20269. This pin supersedes earlier versions.
Q: Why is uncoated carbon steel appropriate for LF PL-20269?
A: Uncoated carbon steel per SAE 1010 specification provides sufficient corrosion resistance for interior warehouse environments where manual pallet trucks operate. The material is economical and offers adequate strength for frame and lever retainer duty without protective coating in typical material handling facilities.
