Product Description

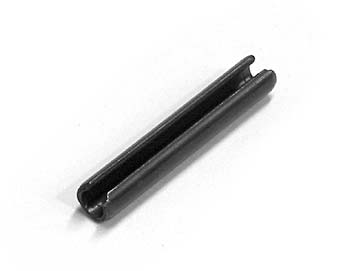

Multiton OEM roll pin (MU 200013-620) designed for TM, M, J, and S frame manual pallet jacks. Manufactured from SAE J403 carbon steel, case-hardened to Rockwell C38–C46, spiral-wound for high shear strength (1000N), with a phosphate corrosion-resistant finish. Pin diameter 3mm, length 22mm, press fit tolerance ±0.005 inches. Cross-reference MT200013-620. Used for frame/hydraulic unit and entry roller mounting.
Compatibility: Fits pallet jacks made by Multiton, model TM. SKU: MU 200013-620
Specifications
Material & Construction
| Material Specification | Case-hardened carbon steel per SAE J403 |
| Hardness | Rockwell C38–C46 core |
Part Numbers
| OEM Part Number | MU 200013-620 |
| Cross-Reference Part Numbers | Alternate part number MT200013-620; No supersedes or equivalent part numbers available |
Frequently Asked Questions
Q: What are the material specifications for the MU 200013-620 roll pin?
A: The MU 200013-620 is manufactured from SAE J403 carbon steel, case-hardened to Rockwell C38-C46 hardness range. This material specification provides high shear strength of 1000N, making it suitable for heavy-duty retention applications in manual pallet jack hydraulic and mechanical assemblies. The pin features a phosphate corrosion-resistant finish for durability in warehouse environments.
Q: What are the dimensions of the MU 200013-620 roll pin?
A: The MU 200013-620 has a pin diameter of 3mm and a length of 22mm. The press fit tolerance is ±0.005 inches. These precise dimensions ensure proper alignment and retention in the frame and hydraulic unit mounting points on Multiton TM series pallet jacks.
Q: Which Multiton models use the MU 200013-620 roll pin?
A: The MU 200013-620 roll pin is designed for Multiton TM, M, J, and S frame manual pallet jacks. It serves as an entry roller mounting pin and frame-to-hydraulic unit alignment fastener. The cross-reference part number is MT200013-620.
Q: Why is the phosphate finish important on the MU 200013-620?
A: The phosphate corrosion-resistant finish protects the SAE J403 steel core from rust and oxidation, extending the service life of the pin in humid warehouse environments and cold storage applications. This finish is especially critical for pallet jacks operating in moist conditions.
