Product Description

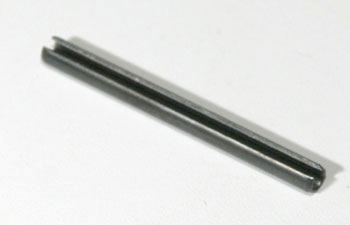

PIN-54143 is a roll pin manufactured from hardened spring steel, nominal size 3/16 inch x 1.18 inches, engineered for control handle assemblies in electric lift trucks such as Crown PE3000 series. It meets or exceeds ASME B18.8.2 standards and features a slotted, self-locking design for secure mechanical retention.
Specifications
Material & Construction
| Material | Hardened spring steel |
| Steel Grade | SAE 1074 or equivalent spring steel |
| Hardness | Rockwell C44–50 |
| Finish | Oiled or dry as-supplied |
Part Numbers
| Manufacturer Part Number | PIN-54143 |
| Compatible Models | Crown PE3000, WAV50, WAV50-118, WAV60, GPW40, PE4000, PE4500 |
Frequently Asked Questions
Q: What are the specifications for PIN-54143?
A: PIN-54143 is a hardened spring steel roll pin with a nominal size of 3/16 inch by 1.18 inches. It meets or exceeds ASME B18.8.2 standards, features a slotted self-locking design, and is hardened to Rockwell C44-50 for secure mechanical retention in control handle assemblies.
Q: Which Crown lift truck models is PIN-54143 compatible with?
A: PIN-54143 is engineered for Crown electric lift trucks including PE3000, PE4000, PE4500, WAV50, WAV50-118, WAV60, and GPW40 series. Verify your specific model and serial range before ordering to ensure exact compatibility.
Q: What material standard is PIN-54143 manufactured to?
A: PIN-54143 is manufactured from SAE 1074 or equivalent hardened spring steel. It is finished either oiled or dry as-supplied and meets automotive-grade spring steel specifications for durability and corrosion resistance.
Q: Why does PIN-54143 have a slotted self-locking design?
A: The slotted self-locking design prevents the pin from spinning or rotating during operation. This feature maintains secure retention in control handle assemblies and other high-vibration applications where pin migration could cause equipment malfunction.
Q: What should I check before ordering PIN-54143?
A: Confirm your Crown model number matches the compatible list (PE3000, PE4000, PE4500, WAV50, WAV50-118, WAV60, or GPW40). Verify the pin dimensions are 3/16 inch by 1.18 inches to ensure proper fitment in your equipment.
