PM-19HB

Frequently Asked Questions

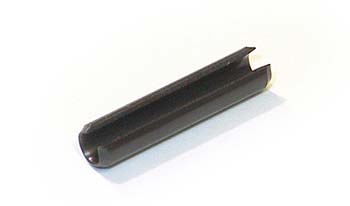

Q: What is the PM-19HB roll pin?
A: The PM-19HB is a spring-type roll pin (also called a spring pin or split pin) for Palletmaster manual pallet jacks. It provides a removable pivot connection at precision fit interfaces in the pallet jack frame and assembly.

Q: What are the dimensions and specifications of the PM-19HB?
A: The PM-19HB has a nominal diameter of 4 mm and a length range of 36 to 40 mm. It is classified as a spring-type roll pin suitable for medium carbon steel or stainless steel bore holes.

Q: What materials is the PM-19HB available in?
A: The PM-19HB is available in medium carbon steel or 300-series stainless steel construction. The stainless steel version offers better corrosion resistance if the pallet jack operates in wet or corrosive environments.

Q: Which Palletmaster models use the PM-19HB roll pin?
A: The PM-19HB is designed for Palletmaster manual pallet jack models PM-19HB, PM19HB, and PM 19HB. Verify bore hole diameter and depth on your frame assembly before ordering.

Q: Is the PM-19HB a reusable component?
A: The PM-19HB is a roll pin designed for single use per insertion. Once compressed into the bore hole, it should not be reused if removed. Always use a new pin on reinstallation.

Q: What is the cross-reference number for the PM-19HB?
A: The PM-19HB is also referenced as PM19HB and PM 19HB. Use these designations interchangeably when ordering or searching technical documentation.
