Product Description

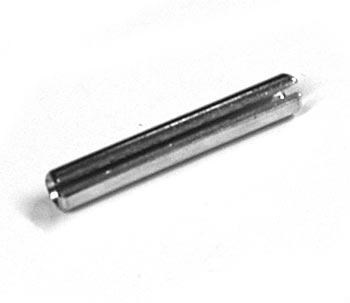

Precision-manufactured roll pin for Palletmaster manual pallet jacks. SKU PM A10, 4 mm x 24 mm slotted spring pin constructed from SAE 1070-1090 high carbon steel, hardened to Rockwell C44–51. Compatible with Palletmaster A10 series. Multiple cross-reference part numbers ensure broad application.
Compatibility: Fits pallet jacks made by Palletmaster, model A10. SKU: PM A10
Specifications
Material & Construction
| Material Specification | High carbon steel |
| Steel Grade | SAE 1070-1090 |
| Hardness | Rockwell C44–51 |
| Finish | Plain oil finish |
Part Numbers
| Manufacturer Part Number | PM A10 |
| Cross-Reference Part Numbers | PSA10, PMA10, PS A10 |
| Equivalent Part Numbers | MG152, ML609, CRRPK, HPPA A10 |
Frequently Asked Questions
Q: What are the exact specifications of the PM A10 roll pin?
A: PM A10 is a 4 mm x 24 mm slotted spring pin manufactured from SAE 1070-1090 high carbon steel and hardened to Rockwell C44-51. The plain oil finish provides corrosion resistance. This precision specification ensures proper fit and retention in Palletmaster pallet jack assemblies.
Q: What pallet jacks is the PM A10 roll pin compatible with?
A: PM A10 is designed for Palletmaster A10 series manual pallet jacks. It secures shaft and lever components in the lift mechanism. Always verify the shaft hole diameter is 4 mm and the assembly length accommodation is 24 mm before ordering.
Q: Does the PM A10 have cross-reference part numbers?
A: Yes. PM A10 has multiple cross-reference part numbers including PSA10, PMA10, PS A10, MG152, ML609, CRRPK, and HPPA A10. These are equivalent parts used across different equipment brands for the same 4 mm x 24 mm slotted spring pin application.
Q: Why is the Rockwell C44-51 hardness specification important for PM A10?
A: The Rockwell C44-51 hardness range ensures the PM A10 pin provides adequate shear strength and resistance to repeated loading cycles in manual pallet jack assemblies. High carbon steel at this hardness prevents deformation and secure retention of lift mechanism components.
Q: What is the material grade of the PM A10 roll pin?
A: PM A10 is manufactured from SAE 1070-1090 high carbon steel. This material grade is selected for the strength and spring properties needed to maintain tension and secure positioning in manual pallet jack lift assemblies under repetitive operational stress.
