Roll Pin for Prime Mover Electric Lift Trucks
PR 20686
Guaranteed Fit. Check fit with us before you buy. If we confirm it fits your machine and it doesn’t, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Send us your make, model and serial number and we’ll check it before you buy.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
- |
Visit our diagram page for part references to popular models
Product Description

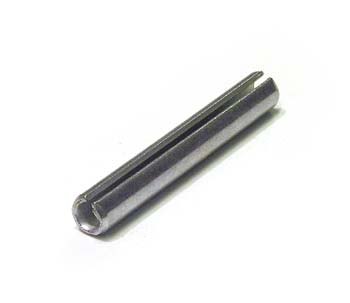

PR 20686 Roll Pin is an OEM replacement component for Prime Mover electric lift trucks, manufactured from high-carbon spring steel to ASME B18.8.2 standards. Designed for secure press-fit installation, this coiled spring pin provides reliable shaft retention in pallet jack drive assemblies. Cross-references include PM20686, PM 20686, and TSA/PMP 110373-33.
Specifications
Material & Construction
| Material Specification | High-carbon spring steel (SAE 1070-1095) |
| Hardness | Rockwell C44–C50 |
Part Numbers
| OEM Part Number | PR 20686 |
| Manufacturer Part Number | PR 20686 |
| Cross-Reference Part Numbers | PM20686, PM 20686 |
| Equivalent Part Numbers | TSA/PMP 110373-33 |
Frequently Asked Questions
Q: What material is the PR 20686 roll pin made from and what are its specifications?
A: PR 20686 is manufactured from high-carbon spring steel (SAE 1070-1095) per ASME B18.8.2 standards with Rockwell hardness rating C44-C50. This material composition provides the spring tension and wear resistance needed for shaft retention in drive assemblies.
Q: Which equipment models use PR 20686 and what are the cross-reference part numbers?
A: PR 20686 is an OEM replacement for Prime Mover electric lift trucks. Cross-reference part numbers include PM20686, PM 20686, and TSA/PMP 110373-33. Use these numbers when searching for equivalent inventory or OEM documentation.
Q: What is the function of a roll pin in a pallet jack drive assembly?
A: The roll pin provides secure press-fit retention of shafts within the drive assembly. It prevents shaft rotation or axial movement under load, maintaining proper engagement between motor and transmission components.
Q: How do I identify if a PR 20686 roll pin needs replacement?
A: Replace the roll pin if you observe shaft slippage, excessive play in the drive assembly, or visible deformation. A worn or failed pin will cause inconsistent drive performance or complete loss of power transmission.
