Product Description

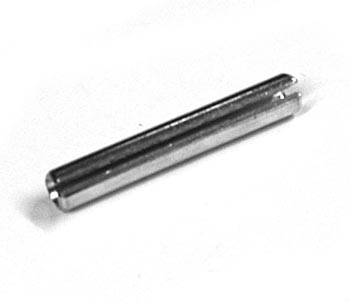

Big Joe BJ 060974 OEM roll pin, standard open toe design, precision spring steel. Dimensions: 7/16 inch diameter, 1-3/8 inch length. Suitable for Big Joe electric pallet trucks and electric lift trucks as frame/wheel retainer.
Specifications
Part Numbers
| OEM Part Number | BJ 060974 |
| Manufacturer Part Number | 060974 |
Frequently Asked Questions
Q: What are the specifications of the BJ 060974 roll pin?
A: The BJ 060974 is an OEM roll pin with standard open toe design manufactured from precision spring steel. Dimensions are 7/16 inch diameter and 1-3/8 inch length. It is designed as a frame and wheel retainer for Big Joe electric pallet trucks and electric lift trucks.
Q: What is the difference between an open toe roll pin and a slotted spring pin?
A: An open toe roll pin like the BJ 060974 has a continuous spiral with an open end, making installation and removal simpler. A slotted spring pin has a continuous slot along its length. Open toe pins are standard for general assembly work, while slotted pins are preferred for applications requiring higher precision fit and shear-load resistance.
Q: Can the BJ 060974 be used as a direct replacement for other 7/16 inch diameter roll pins on electric lift trucks?
A: The BJ 060974 should only be used where Big Joe specifies this OEM part number. Always verify that the diameter and length match your equipment. While other manufacturers may use similar-sized roll pins, material properties and tolerance specifications may differ, affecting fit and safety on frame and wheel assemblies.
Q: What material is the BJ 060974 made from?
A: The BJ 060974 is constructed from precision spring steel, which provides the elastic properties needed for a secure yet removable fit in assembly applications. Spring steel resists permanent deformation under load and vibration.
