Product Description

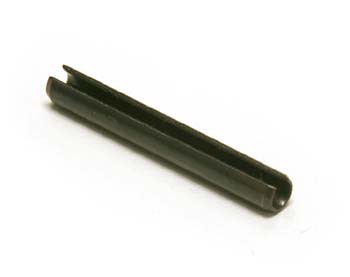

High carbon steel roll pin (1/4" diameter × 1 3/16" length) designed for use in Uline manual pallet jacks. Constructed to ANSI B18.8.2 standards with Rockwell C45 minimum hardness for durability and reliability. Secures pallet jack frame assembly and internal components including pump mechanism and load wheel mounting brackets. Direct replacement for Uline models H-1043, H-1193, H-1366, and H-1484.
Specifications
Dimensions & Physical Properties
| Diameter | 1/4 inch |
| Length | 1 3/16 inches |
Material
| Pin Material | High carbon steel |
| Hardness | Rockwell C45 minimum |
| Standard | ANSI B18.8.2 |
Part Information
| Part Number | H-1043-B102 |
| Compatible Models | Uline H-1043, H-1193, H-1366, H-1484 Manual Pallet Jack |
| Application | Frame assembly and internal component securing |
Frequently Asked Questions
Q: Which Uline pallet jack models use the UE H-1043-B102 roll pin?
A: The UE H-1043-B102 roll pin fits Uline manual pallet jacks models H-1043, H-1193, H-1366, and H-1484. Verify your model number matches one of these designations before ordering.
Q: What are the specifications for this roll pin?
A: The UE H-1043-B102 roll pin has a diameter of 1/4 inch and length of 1 3/16 inches. It is constructed from high carbon steel per ANSI B18.8.2 standard with a minimum Rockwell C45 hardness rating.
Q: What does the roll pin secure in the pallet jack assembly?
A: This roll pin is used for securing the pallet jack frame assembly and internal components. It maintains alignment of the pump mechanism and load wheel mounting brackets during operation.
Q: Why is high carbon steel used for this roll pin?
A: High carbon steel with Rockwell C45 minimum hardness provides shear strength and durability needed to withstand the forces generated during repeated lifting cycles and heavy load handling.
Q: When should this roll pin be replaced?
A: Replace the roll pin if it bends, breaks, or loosens during operation. Signs of failure include rattling in the frame assembly, misalignment of pump components, or difficulty operating the pallet jack.
Q: Does this part have any cross-references or equivalent SKUs?
A: This is the OEM part number UE H-1043-B102. The manufacturer part number is H-1043-B102. Contact us to confirm if aftermarket equivalents are available for your specific model.
