Product Description

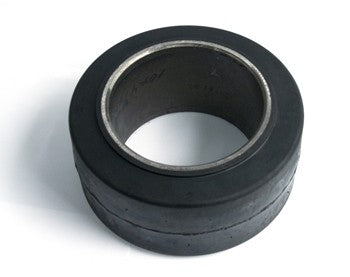

The Raymond RA 630-229 is a heavy-duty rubber drive tire engineered for electric pallet truck applications. Featuring a smooth flat tread design and press-on mount, this tire measures 10.000 inches outer diameter × 4.750 inches width × 6.500 inches inner diameter and is built with industrial-grade rubber compound for reliable performance in warehouse environments. Available in marking and non-marking compound options, the 630-229 is a direct replacement for Raymond 8300, 8400, 8500, and 8600 Series pallet trucks. Supersedes earlier part designations and cross-references with multiple compatible variants. Ideal for facilities requiring consistent traction, floor stability, and extended service life.
Specifications
Tire Specifications
| Tire Dimensions | 10.000 inch OD x 4.750 inch width x 6.500 inch ID |
| Tread Type | Smooth flat tread |
| Mount Type | Press-on mount |
| Compound Options | Marking and non-marking |
Material & Construction
| Tire Material Specification | Industrial rubber compound, ASTM D2000 compliant |
Part Numbers & Compatibility
| Part Number | RA 630-229 |
| Cross-Reference Part Numbers | 630-229/001, 630-229/002, 630-229/003, 630-229/005 |
| Supersedes/Replaces | Supersedes 630-229/001; Equivalent to 630-229/002 (non-marking), 630-229/003 (marking), 630-229/005 (marking) |
| Compatible Equipment Models | Raymond 8300 Series, 8400 Series, 8500 Series, 8600 Series |
Frequently Asked Questions
Q: Which Raymond pallet truck models are compatible with the RA 630-229?
A: The RA 630-229 is designed for Raymond 8300, 8400, 8500, and 8600 Series electric pallet trucks. Dimensions are 10 inches outer diameter by 4.75 inches width by 6.5 inches inner diameter. Confirm your truck model and series designation before ordering to ensure proper fitment.
Q: What are the equivalent part numbers for the RA 630-229?
A: The RA 630-229 is superseded by and equivalent to multiple part numbers: 630-229/001, 630-229/002 (non-marking), 630-229/003 (marking), and 630-229/005 (marking). The original number 630-229/001 is superseded by this part. Marking and non-marking variants have different tread compounds. Verify which option your operation requires.
Q: What is the difference between the marking and non-marking versions of the RA 630-229?
A: The marking version (630-229/003, 630-229/005) uses a rubber compound that leaves visible marks on polished or sealed concrete floors, useful for tracking equipment movement or navigation. The non-marking version (630-229/002) features a compound formulated to minimize floor marking. Both versions have identical dimensions and compatible mounting.
Q: What tread pattern does the RA 630-229 have?
A: The RA 630-229 features a smooth flat tread design, optimized for electric pallet truck applications. This design provides consistent floor contact for stable load handling and forward traction. The smooth profile minimizes noise and is compatible with both standard concrete and polished warehouse floors.
Q: What is the typical service life of the RA 630-229 tire?
A: Tire longevity depends on daily operating hours, load weight, and floor conditions. The RA 630-229 rubber compound resists wear from repetitive acceleration and frequent floor contact. Expected service intervals range from 12 to 24 months under normal warehouse use. Inspect quarterly for uneven wear or cracks and replace if tread becomes thin or damage is visible.
