Product Description

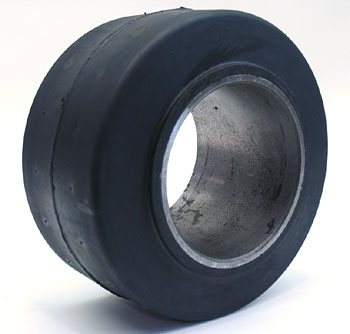

SU 9x5x5-SF-R is a press-on rubber drive tire featuring a smooth flat tread, 9-inch outer diameter, 5-inch width, and 5-inch inner diameter. Designed for electric lift truck applications, this tire utilizes a high-grade natural rubber compound and a steel core band for secure press-on mounting, supporting up to 3020 lbs at 6 MPH. Cross-references include Supersedes S090050050 and equivalent to 076751-001, compatible with Superior Electric Pallet Jack units.
Specifications: 9.000 inch diameter x 5.000 inch width (9.000" x 5.000" | 9 x 5 wheel | 9 x 5-0/0 | 228.60mm x 127.00mm)
Specifications
Material
| Tire Material | High-grade natural rubber compound |
| Core Material | Press-on steel band |
Part Numbers
| Manufacturer Part Number | SU 9x5x5-SF-R |
| OEM Part Number | SU9X5X5SFR |
| Cross-Reference Part Numbers | Supersedes S090050050, equivalent to 076751-001 |
Performance
| Maximum Rolling Speed | 6 miles per hour (3020 lb rated load) |
Wheel Specifications
| Outside Diameter (in) | 9.000 |
| Width (in) | 5.000 |
| Outside Diameter (mm) | 228.60 |
| Width (mm) | 127.00 |
| Drive Tire Profile | Smooth Flat |
| Material | Rubber |
Frequently Asked Questions
Q: What is the load capacity and maximum speed for the SU 9x5x5-SF-R tire?
A: The SU 9x5x5-SF-R is rated for a maximum rolling speed of 6 miles per hour while supporting up to 3020 lbs. This tire is designed for electric lift truck drive wheel applications where controlled speed and safe load handling are critical.
Q: Is the SU 9x5x5-SF-R equivalent to any OEM part numbers?
A: Yes. The SU 9x5x5-SF-R is equivalent to OEM part number 076751-001 and supersedes the older part number S090050050. Always verify your current equipment to ensure compatibility before ordering.
Q: What mounting method does this tire use?
A: The SU 9x5x5-SF-R uses press-on mounting with a steel core band. The tire is pressed directly onto a wheel hub or shaft. Do not use hammers or impact tools for installation; use a proper tire press to avoid damage to the rubber compound or core band.
Q: What material is the SU 9x5x5-SF-R made from?
A: This tire features a high-grade natural rubber compound with a press-on steel band core. The natural rubber provides good traction and durability on concrete floors typical in warehouse and manufacturing environments.
Q: What tire dimensions should I verify before ordering the SU 9x5x5-SF-R?
A: Confirm these specifications: 9-inch outer diameter, 5-inch width, and 5-inch inner diameter (bore). Measure your existing wheel hub or shaft diameter to ensure the 5-inch bore matches your equipment before purchase.
