Product Description

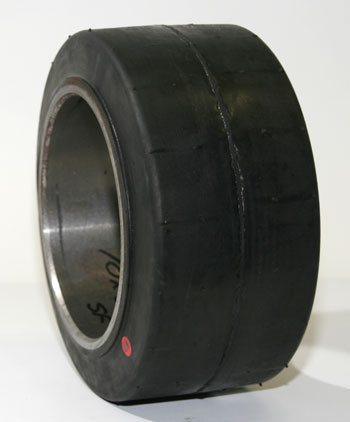

Industrial-grade solid rubber press-on tire for electric lift truck applications. 10.0 inch OD, 5.0 inch tread width, 6.5 inch ID, compatible with Monarch/Trelleborg 042028-001, Superior Tires SU10X5X6.5S, and Industrial Rubber Tires 10565. Non-marking and universal compounds available. Designed for press-on fit, smooth profile, and premium durability in material handling environments.
Specifications: 10.000 inch diameter x 5.000 inch width (10.000" x 5.000" | 10 x 5.00 wheel | 10 x 5 | 254.00mm x 127.00mm)
Specifications
Material
| Tread Material | Industrial-grade rubber, smooth compound |
| Press-On Ring | 3/8 inch steel press-on ring |
Part Numbers
| Cross-Reference Part Numbers | Equivalent to Monarch/Trelleborg 042028-001, comparable to Superior Tires SU10X5X6.5S, interchangeable with Industrial Rubber Tires 10565, supersedes R01000500651 |
| Manufacturer Part Number | SU 10x5x6.5-SF-R |
| OEM Part Number | 042028-001 |
Wheel Specifications
| Outside Diameter (in) | 10.000 |
| Width (in) | 5.000 |
| Outside Diameter (mm) | 254.00 |
| Width (mm) | 127.00 |
| Drive Tire Profile | Smooth Flat |
| Material | Rubber |
Frequently Asked Questions
Q: Is SU 10x5x6.5-SF-R equivalent to Monarch or Trelleborg tire part numbers?
A: Yes. SU 10x5x6.5-SF-R is a direct equivalent to Monarch and Trelleborg OEM part number 042028-001. It is also comparable to Superior Tires SU10X5X6.5S and Industrial Rubber Tires 10565. These tires share the same 10.0 inch OD, 5.0 inch width, and 6.5 inch bore dimensions and are designed for identical press-on installation. Cross-reference your existing tire or equipment manual with any of these part numbers to confirm compatibility before ordering.
Q: What maintenance is required for SU 10x5x6.5-SF-R in a material handling environment?
A: Inspect the tire monthly for cracks, chunks missing from the tread, or separation from the steel core. Clean the tire surface regularly to remove oil, grease, and chemical residue that can accelerate rubber degradation. Avoid exposure to direct sunlight for extended periods; store indoors when not in use. Check wheel alignment and load distribution quarterly to prevent uneven wear patterns. Replace the tire if the tread wears below 3/16 inch, visible damage appears, or the tire cannot maintain proper grip during operation.
Q: Can SU 10x5x6.5-SF-R be used on a tire that previously had a polyurethane tire?
A: Yes, but verify that the wheel hub bore is exactly 6.5 inches. If the previous tire was a polyurethane or rubber tire also sized 10x5x6.5, the bore diameter is compatible and SU 10x5x6.5-SF-R can be press-fit onto the same hub. Clean the hub bore of any debris or rubber residue before installation. Do not attempt installation if the bore diameter differs from 6.5 inches.
Q: What is the load rating for SU 10x5x6.5-SF-R?
A: The load capacity of SU 10x5x6.5-SF-R is determined by your forklift make, model, and wheel configuration. Solid rubber tires of this size typically support loads of 3000 to 3500 pounds per tire on a four-wheel electric lift truck. Do not exceed the maximum load rating specified in your equipment manual. Overloading will cause accelerated wear, reduced traction, and permanent deformation of the rubber. Consult your OEM documentation or contact the equipment manufacturer to confirm the rated load for your specific model.
Q: Does SU 10x5x6.5-SF-R leave marks on finished warehouse floors?
A: SU 10x5x6.5-SF-R is available in both standard industrial-grade rubber and non-marking rubber compounds. Standard rubber may leave black marks or scuffs on polished floors or sensitive surfaces. Non-marking versions are formulated to minimize or eliminate floor marking. Specify non-marking compound when ordering if you operate in a facility with strict floor appearance requirements. Note that non-marking tires may wear slightly faster than standard compounds under heavy use.
Q: How is SU 10x5x6.5-SF-R installed onto the wheel hub?
A: SU 10x5x6.5-SF-R uses a press-on fit design. The tire is heated slightly to expand the bore, then pressed or hammered onto the 6.5 inch hub bore. Installation requires a tire press or heavy-duty hydraulic press to ensure even, centered seating. Do not attempt to hand-force or hammer the tire onto the hub without a press; this risks damaging the tire and core or creating an off-center fit. After installation, verify that the tire spins concentrically without wobbling. Professional installation at a tire shop is recommended.
