Connector SB350 2/0 Blue
SB6321G1
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
- |
|---|---|
|
Model |
- |
Reference Diagrams
Visit our diagram page for part references to popular models
Product Description

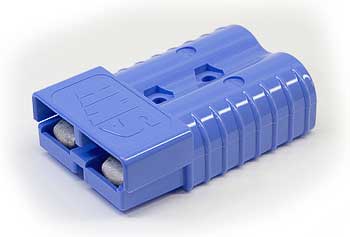

CONNECTOR (SB350 2/0 BLUE)
Specifications
Physical Specifications
| Connector Series | SB350 |
| AWG Rating | 2/0 AWG |
| Color Designation | Blue |
| Continuous Current Rating | 350A |
| Maximum DC Voltage | 600V |
| Connector Type | Battery/Power Distribution Connector |
| Keying | Mechanically keyed to prevent incompatible connections |
Compatibility
| Application | Electric lift trucks, forklifts, battery harness systems |
| Compatible Connector Variants | SB6320G1 (gray), SB6322G1 (red) |
Frequently Asked Questions
Q: What are the specifications of the SB6321G1 blue connector?
A: The SB6321G1 is an SB350 series connector rated for 2/0 AWG cable with 350A continuous and 600V DC maximum ratings. The blue color designation identifies this connector within multi-conductor SB350 systems used in electric lift trucks.
Q: Why is the SB6321G1 colored blue?
A: The blue color provides visual polarity and circuit identification in multi-connector power distribution systems. In standard configurations, blue typically denotes specific power or signal circuits distinct from gray or red connectors in the SB350 family.
Q: How does the SB6321G1 integrate with other SB350 connectors?
A: The SB6321G1 is mechanically keyed to prevent connection with incompatible SB350 connectors. It pairs with other members of the SB350 family (gray SB6320G1, red SB6322G1) in multi-connector battery and DC power distribution harnesses for electric lift trucks and forklifts.
