Product Description

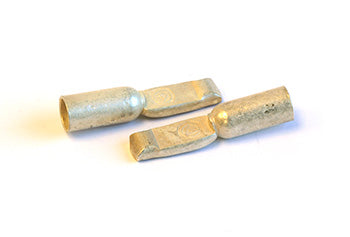

Anderson 6384G1 (AN 6384G1): 175A silver plated power contact for SBX®175/SBE®160 Yale electric lift truck connectors—1/0 AWG crimp, high-conductivity copper alloy, 600V max, 10,000 mating cycles, for rugged material handling applications.
Specifications
Electrical
| Rated Current | 175 Amps continuous |
| Rated Voltage | 600V AC or DC maximum |
Material
| Housing Material Compatibility | PC resin (SBX®), PBT/PC blend (SBE®) |
Part Numbers
| OEM Part Number | AN 6384G1 |
| Manufacturer Part Number | 6384G1 |
| Associated Series | SBX®175, SBE®160 |
Performance
| Auxiliary Contact Current Rating | 20 Amps (with auxiliary contacts, separate order) |
| UL Current Pole Rating | 175 Amps continuous per pole |
Frequently Asked Questions
Q: What is the rated current and voltage for the AN 6384G1 power contact?
A: The AN 6384G1 is rated for 175 Amps continuous at 600V AC or DC maximum. It features silver plating on a high-conductivity copper alloy construction, suitable for Yale SBX 175 and SBE 160 electric lift truck connectors.
Q: What wire gauge and equipment compatibility does the AN 6384G1 support?
A: The AN 6384G1 accommodates 1/0 AWG crimp connections and is compatible with PC resin SBX housings and PBT/PC blend SBE housings. It is designed for Yale electric lift trucks and similar material handling equipment.
Q: How many mating cycles is the AN 6384G1 rated for?
A: The AN 6384G1 is rated for 10,000 mating cycles, making it suitable for rugged material handling applications with frequent connection and disconnection.
Q: Does the AN 6384G1 include auxiliary contacts?
A: Yes, the AN 6384G1 includes auxiliary contacts rated for 20 Amps maximum current. These provide signaling or control functions in addition to the main 175 Amp power contact.
Q: What equipment uses the AN 6384G1 connector?
A: The AN 6384G1 is used on Yale electric lift trucks and material handling equipment equipped with SBX 175 or SBE 160 connector systems. Verify your equipment model before ordering.
