Product Description

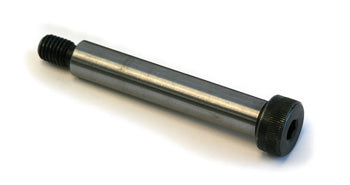

Raymond OEM Shoulder Bolt RA 5-005-017 engineered as a high-strength, alloy steel UNC-threaded fastener for 7400 series reach pallet trucks, specifically designed as axle mounting hardware for 5 inch x 3.62 inch open toe wheels. Manufactured to ASME B18.3 specifications, finished in black oxide, Rockwell C32 surface hardness, with 7/8"-9 threading and 5 inch shoulder length.
"Specifications
Material & Construction
| Material Specification | Alloy Steel |
| Hardness | Rockwell C32 |
Part Numbers
| OEM Part Number | RA 5-005-017 |
| Equivalent Part Number | TSA/RA5-005-017 |
| Compatible Models | Raymond 7400 Reach Pallet Trucks |
Standards
| Design Specification | Conforms to ASME B18.3 |
Frequently Asked Questions
Q: What is the RA 5-005-017 shoulder bolt designed for?
A: The RA 5-005-017 is an OEM shoulder bolt engineered as axle mounting hardware for 5 inch x 3.62 inch open toe wheels on Raymond 7400 Series reach pallet trucks. It is a high-strength fastener manufactured from alloy steel.
Q: What are the specifications of the RA 5-005-017 shoulder bolt?
A: Thread specification is 7/8 inch 9 UNC right-hand. Shoulder length is 5 inches. Material is alloy steel with black oxide finish. Surface hardness is Rockwell C32. Design conforms to ASME B18.3 specifications.
Q: Which pallet truck models use the RA 5-005-017 shoulder bolt?
A: The RA 5-005-017 is the OEM shoulder bolt for Raymond 7400 Series reach pallet trucks with 5 inch x 3.62 inch open toe wheel assemblies. Verify your model and wheel dimensions before ordering.
Q: What is the equivalent part number for the RA 5-005-017?
A: The equivalent part number is TSA/RA5-005-017. Both designations refer to the same OEM shoulder bolt assembly for Raymond 7400 reach trucks.
Q: Why does the RA 5-005-017 have a shoulder design?
A: The shoulder design creates a fixed axle length for precise wheel alignment and load transfer. This design prevents side-to-side wheel movement and maintains critical spacing between the wheel hub and truck frame.
Q: Can I use a standard bolt instead of the RA 5-005-017 shoulder bolt?
A: No. A standard bolt does not provide the fixed shoulder length required for proper wheel alignment on the 7400 reach truck. Using non-OEM fasteners compromises load stability and wheel performance. Always use the RA 5-005-017 shoulder bolt for this application.
