Product Description

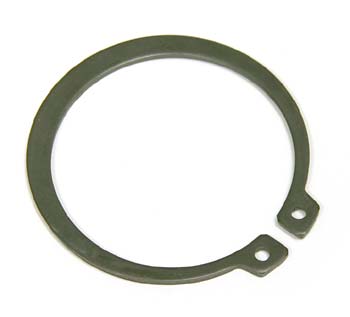

High-performance snap ring designed for Jet PTW series manual pallet jack hydraulic systems. Manufactured from precision spring steel with corrosion-resistant finish, this retention ring delivers reliable load-holding performance in continuous-duty piston assemblies. Direct replacement component engineered to exact factory specifications for superior fit and durability in material handling applications.
Specifications
Dimensional Specifications
| Clearance Requirement | 0.010 inch radial clearance between snap ring and groove wall |
Material & Construction
| Material Specification | Spring steel per SAE 1070 |
| Surface Hardness | Rockwell C45 minimum |
| Corrosion Resistance | Salt spray resistant per ASTM B117 |
Part Numbers
| Manufacturer Part Number | JT PT2036-3-14 |
| Factory-spec Part Number | JT PT2036-3-14 |
Performance Specifications
| Service Factor | 1.15 continuous duty |
| Cycle Life | Rated for 120,000 actuation cycles |
Frequently Asked Questions
Q: What are the material specifications for the JT PT2036-3-14 snap ring?
A: The JT PT2036-3-14 is manufactured from spring steel per SAE 1070 specification with a minimum Rockwell C45 hardness rating. The material provides superior fatigue resistance and retention force in continuous-duty hydraulic applications.
Q: What is the radial clearance requirement for this snap ring in the groove?
A: The JT PT2036-3-14 requires a 0.010 inch radial clearance between the snap ring and groove wall. Excessive clearance reduces retention force and may cause the ring to slip during piston cycling. Verify groove dimensions before installation.
Q: Is the JT PT2036-3-14 resistant to corrosion in wet storage or outdoor use?
A: Yes, the JT PT2036-3-14 features salt spray corrosion resistance per ASTM B117 testing standards. This makes the snap ring suitable for humid or outdoor storage environments without surface degradation or embrittlement.
Q: What is the service factor rating for continuous duty use?
A: The JT PT2036-3-14 has a 1.15 continuous-duty service factor, meaning the snap ring is rated to handle 15 percent above standard nominal load without permanent deformation. This provides a safety margin in high-frequency or heavy-load applications.
Q: Which Jet pallet jack models use the JT PT2036-3-14 snap ring?
A: The JT PT2036-3-14 is a spring steel retention ring for Jet PTW series manual pallet jacks and is used in the hydraulic unit piston assembly. It provides precision fitment for PT2036 frame configurations and hydraulic pump cartridges.
