Product Description

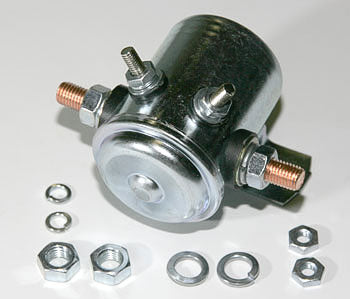

24VDC intermittent duty solenoid, 100 amp rating, flat mounting base with 42.5 mm bolt pattern, compatible with electric lift truck systems. Equivalent to AMETEK 15-416, cross-reference part number SAW-5406. Single-pole single-throw contact with 4 terminal screw connections.
Specifications
Electrical
| Nominal Coil Voltage | 24VDC |
| Terminal Type | 4 terminal flat base |
| Continuous Current Rating | 100 amperes |
| Activation Voltage | Pull-in at 24VDC |
Material
| Frame Material | Steel housing |
Part Numbers
| Cross-Reference Part Numbers | Interchange: AMETEK 15-416, supersedes 15-416A, equivalent to SAW5406 |
| OEM Part Number | SAW-5406 |
| Manufacturer Part Number | SAW-5406 |
Frequently Asked Questions
Q: What is the voltage and current rating of the SAW-5406 solenoid?
A: The SAW-5406 is a 24VDC intermittent duty solenoid with a 100 ampere continuous current rating. It is designed for electric lift truck systems and features single-pole single-throw contact configuration.
Q: What are the cross-reference part numbers for the SAW-5406?
A: The SAW-5406 is equivalent to AMETEK 15-416 and supersedes the earlier 15-416A model. Use SAW-5406 as the current manufacturer part number for ordering and compatibility verification.
Q: What is the mounting configuration and terminal type?
A: The SAW-5406 has a flat mounting base with a 42.5 mm bolt pattern. It features 4 terminal screw connections for electrical attachment to lift truck control circuits.
Q: What materials and construction does the SAW-5406 use?
A: The solenoid has a steel housing that provides durability and electromagnetic shielding for industrial material handling equipment. The steel frame is rated for the 100 ampere load and intermittent duty cycle.
Q: What types of electric lift truck systems is the SAW-5406 compatible with?
A: The SAW-5406 is compatible with 24VDC electric lift truck systems from major manufacturers including Crown, Toyota, Raymond, Yale, and Hyster. Verify your equipment voltage and mounting footprint before ordering.
