Product Description

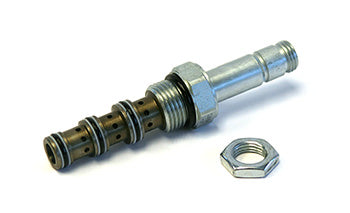

Raymond RA 520-968 is an OEM solenoid valve designed for auxiliary manifold tilt function in electric lift truck applications. It features direct solenoid actuation, manifold mounting, and compatibility with the Raymond DR32TT hydraulic control system. Standard construction includes high-strength anodized aluminum body, 24VDC electrical control, and OEM bolt pattern for lift truck integration.
Specifications
Dimensional Specifications
| Mounting Pattern | OEM bolt pattern for Raymond auxiliary manifold—hole locations per Raymond lift truck DR32TT block specification |
Hydraulic
| Manifold Circuit | Tilt function control for DR32TT system |
Part Numbers
| OEM Part Number | RA 520-968 |
| Equivalent Part Number | 520-968 |
| Compatible Models | Raymond Model 7400 |
Frequently Asked Questions
Q: What function does the RA 520-968 solenoid valve perform?
A: The RA 520-968 is an OEM solenoid valve for auxiliary manifold tilt function control in Raymond Model 7400 electric lift trucks. It provides direct solenoid actuation of the tilt circuit within the DR32TT hydraulic control system.
Q: What is the material and mounting specification?
A: The RA 520-968 features a high-strength anodized aluminum body rated for 24VDC electrical control. It mounts to the Raymond auxiliary manifold using OEM bolt pattern and hole locations per the DR32TT block specification.
Q: Is the RA 520-968 equivalent to the RA 520-951/003?
A: Both are solenoid valves for the DR32TT system, but they control different circuits. The RA 520-968 is for tilt function on the auxiliary manifold. Verify your specific manifold configuration and circuit requirements before substituting parts.
Q: What are the cross-reference part numbers?
A: The equivalent part number is 520-968. When sourcing replacements, use the OEM part number RA 520-968 and verify compatibility with Raymond Model 7400 DR32TT auxiliary manifold configuration.
