Product Description

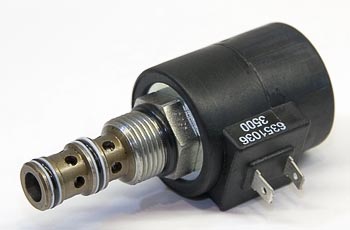

Crown CR 088280-2 is an OEM solenoid valve designed for electric lift truck hydraulic systems, providing 2-way, normally closed operation with direct acting control. Rated for up to 1.2 MPa, fits G 1/8 port threading, and specified for 24VDC operation. Compatible with air, water, and oil media.
Specifications
Electrical
| Coil Voltage | 24VDC (other voltages available) |
| Power Consumption | 0.7 watts (DC) |
| Protection Class | IP65 (DIN40050) |
Hydraulic
| Working Pressure | 0 to 0.8 MPa |
| Maximum Pressure | 1.2 MPa |
| Seal Material | NBR |
Part Numbers
| OEM Part Number | CR 088280-2 |
| Manufacturer Part Number | 088280-2 |
Performance
| Activation Time | <0.05 seconds |
Frequently Asked Questions
Q: What is the CR 088280-2 OEM solenoid valve designed for?
A: The CR 088280-2 is an OEM solenoid valve from Crown designed for electric lift truck hydraulic systems. It provides 2-way, normally closed operation with direct acting control for precise pressure regulation and directional flow management in Crown electric pallet jacks and lift trucks.
Q: What are the complete specifications for the CR 088280-2?
A: The CR 088280-2 is rated for 24VDC operation (other voltages available upon request) with power consumption of 0.7 watts DC. Working pressure range is 0 to 0.8 MPa with a maximum pressure rating of 1.2 MPa. It features G 1/8 port threading, NBR seals, an activation time under 0.05 seconds, and IP65 protection class per DIN40050.
Q: What media types are compatible with the CR 088280-2?
A: The CR 088280-2 is compatible with air, water, and mineral-based hydraulic oils. The NBR seal material provides reliable performance with standard hydraulic fluids used in Crown electric lift trucks and pallet jacks.
Q: Are alternative voltage options available for the CR 088280-2?
A: Yes, the CR 088280-2 is standard with 24VDC coil, but other voltage options are available upon request. If your lift truck requires a different voltage specification, contact us with your equipment model and serial number to confirm availability.
Q: What is the port connection standard for the CR 088280-2?
A: The CR 088280-2 uses G 1/8 ISO port threading, a standard connection size for solenoid valves in compact hydraulic systems. Verify port configuration matches your lift trucks hydraulic manifold before ordering.
Q: How does the IP65 protection rating benefit the CR 088280-2 in warehouse use?
A: The IP65 protection rating per DIN40050 makes the CR 088280-2 dust-tight and resistant to water spray from any direction. This rating ensures reliable operation in wet floors, cold storage, and outdoor loading areas where moisture exposure is common in material handling facilities.
