Product Description

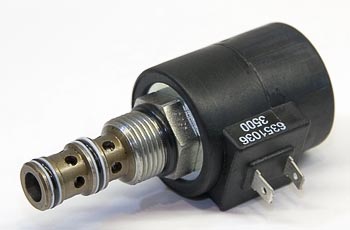

Crown CR 117304-2 is an original equipment solenoid valve for electric lift trucks, featuring 2-way poppet construction, high-pressure hydraulic performance, and continuous-duty electrical operation. Compatible with selected Crown electric pallet jacks. Supersedes 117304-002.
Specifications
Electrical
| Coil Type | Wet-armature construction |
Hydraulic
| Rated Working Pressure | 3500 PSI |
| Proof Pressure | 5000 PSI |
| Burst Pressure | 5000 PSI |
| Flow Direction | Port 2 to port 1 with unrestricted flow when de-energized |
| Solenoid Function | Blocks flow from port 2 to port 1 when energized |
Material & Construction
| Seat Material | Hardened seat for service life |
| Coil Construction | Molded, voltage interchangeable cartridge |
Part Numbers
| OEM Part Number | CR 117304-2 |
| Manufacturer Part Number | 117304-002 |
| Replaces/Supersedes Part Numbers | 117304-002 |
| Equivalent Part Numbers | CR117304-2 |
Frequently Asked Questions
Q: What is the CR 117304-2 solenoid valve?
A: The CR 117304-2 is an updated Crown OEM solenoid valve featuring 2-way poppet construction and high-pressure hydraulic performance. It provides continuous-duty electrical operation for electric pallet jacks and replaces the older CR 117304-002 model.
Q: Does the CR 117304-2 replace CR 117304-002?
A: Yes, the CR 117304-2 is the current generation replacement for CR 117304-002. It is designed as a direct supersede, but you must verify that your Crown equipment model is compatible with the updated valve before installation.
Q: What are the pressure specifications for the CR 117304-2?
A: The CR 117304-2 has a rated working pressure of 3500 PSI, a proof pressure of 5000 PSI, and a burst pressure of 5000 PSI. These specifications ensure safe operation in Crown electric lift truck hydraulic systems without leakage or structural failure.
Q: What is the flow direction on the CR 117304-2?
A: The CR 117304-2 is configured for Port 2 to Port 1 flow with unrestricted flow when de-energized. Ensure that your hydraulic circuit piping matches this flow path and port alignment before installation.
