Product Description

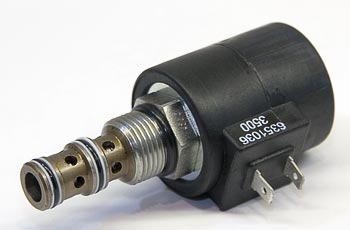

Toyota TO 00591-32108-81 Solenoid Valve for electric lift truck hydraulics. 12VDC coil, machined steel housing, rated 6 GPM at 2000 PSI, SAE O-ring boss 3/8 inch ports, compatible with Toyota electric lift trucks. No cross-reference part numbers available.
Specifications
Electrical
| Control Voltage | 12VDC nominal |
Hydraulic
| Rated System Pressure | Maximum 2500 PSI |
| Hydraulic Port Thread | SAE O-ring boss, 3/8 inch |
| Flow Capacity | Rated 6 GPM at 2000 PSI |
Material & Construction
| Body Material | Machined steel housing |
Part Numbers
| OEM Part Number | TO 00591-32108-81 |
| Manufacturer | Toyota Material Handling |
Frequently Asked Questions
Q: What are the pressure and flow specifications for the TO 00591-32108-81 solenoid valve?
A: The TO 00591-32108-81 is rated for 6 GPM at 2000 PSI with a maximum system pressure of 2500 PSI. The solenoid operates on 12VDC nominal control voltage.
Q: What port configuration does this Toyota solenoid valve use?
A: The TO 00591-32108-81 features SAE O-ring boss ports with 3/8 inch thread. This is the standard configuration for Toyota electric lift truck hydraulic systems.
Q: What material is the TO 00591-32108-81 solenoid valve body?
A: The valve body is machined steel housing, which provides durability under sustained hydraulic system pressures in electric lift truck applications.
Q: Which Toyota electric lift truck models are compatible with the TO 00591-32108-81?
A: The TO 00591-32108-81 is an OEM Toyota part designed for Toyota electric lift trucks. Verify your equipment serial number and hydraulic system configuration before ordering.
Q: Are there cross-reference part numbers for the TO 00591-32108-81?
A: No cross-reference part numbers are available. The TO 00591-32108-81 is the OEM Toyota part number and should be used for ordering to ensure compatibility.
