Spring Pin for Uline H-1043
UE H-1043-B30
Guaranteed Fit. If it doesn’t fit equipment that matches the listing on this page, we’ll exchange or refund it: no restocking fee, return shipping on us. How it works
Not sure it fits? Check it with us before you buy. Once we confirm the fit in writing, it’s guaranteed for your machine.
Couldn't load pickup availability
- Expert support & fitment help
- 30-day returns
- Fast Shipping
Compatibility
|
Make |
|
|---|---|
|
Model |
|
Visit our diagram page for part references to popular models
Product Description

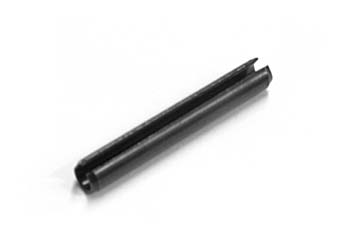

Uline H-1043-B30 spring pin for manual pallet truck frame assembly. OEM retention fastener compatible with H-1043, H-1193, H-1366, and H-1509 models. Spring steel construction for axle shaft retention on load wheel bracket assembly. Press fit installation for fork frame maintenance and repair applications.
Compatibility: Fits pallet jacks made by Uline, model H-1043. Alternate model: H1043; H 1043. SKU: UE H-1043-B30
Specifications
Assembly Reference
| Related Components | Works with axle shaft H-1043-B29, load wheel bracket H-1043-B31, exit roller ring H-1043-B28 |
Functional Classification
| Installation Position | Axle shaft B29 retention point on frame assembly B31 |
Material
| Material Type | Spring steel construction |
Part Numbers
| OEM Part Number | H-1043-B30 |
| Manufacturer Part Number | B30 |
| Cross-Reference Part Numbers | Compatible with Uline models H-1043, H-1193, H-1366, H-1509 |
Frequently Asked Questions
Q: Which Uline pallet jack models use the UE H-1043-B30 spring pin?
A: The UE H-1043-B30 spring pin fits Uline manual pallet truck models H-1043, H-1193, H-1366, and H-1509. It is a retention fastener for the axle shaft on the load wheel bracket assembly. Confirm your equipment model before ordering.
Q: What material is the UE H-1043-B30 made from?
A: The UE H-1043-B30 is manufactured from spring steel construction, which provides the elasticity and strength needed to retain the axle shaft under continuous operational load and vibration.
Q: Where exactly does the UE H-1043-B30 mount on the pallet jack frame?
A: The UE H-1043-B30 is the retention point for axle shaft B29 on the frame assembly B31. It secures the axle shaft to the load wheel bracket assembly.
Q: How long does a spring pin typically last before it needs replacement?
A: Spring steel pins like the UE H-1043-B30 typically last the life of the pallet jack. Replace if the pin has lost tension, shows visible cracking, or the wheel assembly moves side-to-side when it should be locked in place.
Q: What happens if the UE H-1043-B30 fails or becomes loose?
A: If the spring pin fails, the axle shaft can slip out of the frame assembly, causing the load wheel to become unstable or detach. This creates a safety hazard and reduces load capacity. Replace immediately upon detecting movement or wear.
