Product Description

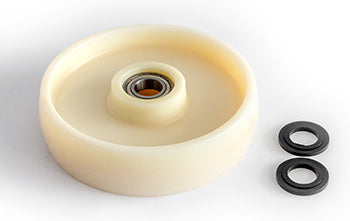

The steer wheel assembly delivers reliable performance for manual pallet jack operations. Constructed from durable PA6 industrial nylon with a natural finish wheel and polished steel hub, this assembly features factory-lubricated chrome steel double ball bearings for smooth operation. Rated at 1100 lbs capacity with a non-marking wheel surface, it is ideal for warehouse, retail, food processing, and pharmaceutical environments where equipment durability and floor protection are essential.
Specifications
Material & Construction
| Wheel Material | PA6 industrial nylon |
| Bearing Material | Chrome steel, factory lubricated |
| Finish | Wheel: natural nylon; hub: polished steel |
| Hardness | Rockwell R115 (+/- 5) |
Dimensions & Performance
| Diameter | 7.87 inch |
| Tread Width | 2 inch |
| Bore | 20 mm |
| Weight Capacity | 1100 lbs |
| Service Type | Non-marking, high-durability warehouse service |
Part & Compatibility Information
| Part Number | BJ 800-N |
| Compatible Make | Big Joe (Lift-Rite) |
| Compatible Model | BJ 800-N (BJ800N, BJ 800 N) |
Frequently Asked Questions
Q: What material is the steer wheel assembly made from?
A: The steer wheel assembly is manufactured from PA6 industrial nylon with a natural finish wheel and polished steel hub. The wheel features chrome steel double ball bearings with a Rockwell hardness of R115 (+/- 5).
Q: What is the weight capacity and application of this steer wheel assembly?
A: This assembly is rated for 1100 lbs and is designed for non-marking, high-durability warehouse service. The nylon compound does not leave marks on clean surfaces, making it ideal for retail, food processing, pharmaceutical, and hospitality environments.
Q: Which manual pallet jack models does this steer wheel assembly fit?
A: The steer wheel assembly fits Big Joe manual pallet jacks, model BJ 800-N. Alternate model designations include BJ800N and BJ 800 N. This is a direct replacement wheel assembly specifically designed for Lift-Rite (Big Joe) equipment.
Q: What are the physical dimensions of this steer wheel assembly?
A: The wheel diameter is 7.87 inches with a 2 inch tread width and 20 mm bore. These dimensions allow for compatible fitment with standard Big Joe pallet jack mounting points.
Q: Are the bearings pre-lubricated?
A: Yes, the steer wheel assembly features factory-lubricated double ball bearings made from chrome steel. The bearings come pre-lubricated from the manufacturer, ensuring smooth rolling operation upon assembly.
Q: Is this wheel suitable for use on wet or oily floors?
A: The steer wheel assembly is designed for dry warehouse flooring conditions. For extended floor life and performance, use on dry surfaces. If floors become wet or oily, allow them to dry or clean before operating equipment on these surfaces to maintain traction and extend wheel lifespan.
