Product Description

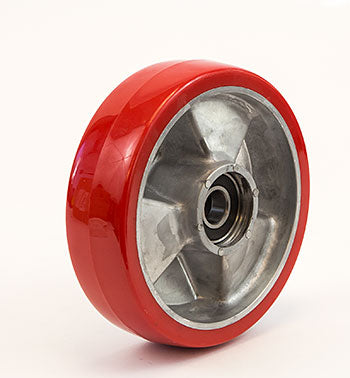

Eagleman EA E183-A steer wheel assembly for manual pallet jacks features a 7 inch diameter ultra-polyurethane tread bonded to die-cast aluminum hub. Cross-references include EA E183-A-HD, EAE183-A-HD, and EGE183-A-HD. Wheel includes sealed bearing (20 mm bore) suitable for heavy-duty pallet jack steer applications.
Compatibility: Fits pallet jacks made by Eagleman, model EA E183-A. Alternate model: EAE183A; EA E183 A. SKU: EA E183-A
Specifications
Material & Construction
| Tread Hardness | Shore A 95 (nominal, polyurethane) |
| Finish | -machined bearing bore, as-cast hub, polyurethane tread bonded |
Part Numbers
| OEM Part Number | EA E183-A |
| Manufacturer Part Number | EA E183-A |
| Cross-Reference Part Numbers | Supersedes EA E183-A-HD; Equivalent to EAE183-A-HD, EGE183-A-HD |
Frequently Asked Questions
Q: What diameter is the EA E183-A steer wheel and what is the tread material?
A: The EA E183-A features a 7 inch diameter with an ultra-polyurethane tread bonded to a die-cast aluminum hub. The tread hardness is Shore A 95 nominal, designed for manual pallet jack steering applications.
Q: What bearing size does the EA E183-A use and what pallet jacks does it fit?
A: The EA E183-A uses a sealed bearing with a 20 mm bore specification. It is compatible with Eagleman model EA E183-A pallet jacks. Alternate model designations include EAE183A and EA E183 A.
Q: What are the cross-reference part numbers for the EA E183-A?
A: Cross-reference part numbers for the EA E183-A include EA E183-A-HD, EAE183-A-HD, and EGE183-A-HD. The EA E183-A supersedes the EA E183-A-HD designation.
Q: Is the EA E183-A hub finish machined or as-cast?
A: The EA E183-A features a machined bearing bore with an as-cast hub and polyurethane tread bonded to the aluminum hub structure.
Q: What makes the EA E183-A suitable for heavy-duty pallet jack applications?
A: The EA E183-A is engineered for heavy-duty service with a sealed bearing design, die-cast aluminum hub, and ultra-polyurethane tread at Shore A 95 hardness. These features provide durability and consistent steering performance in demanding material handling environments.
