Product Description

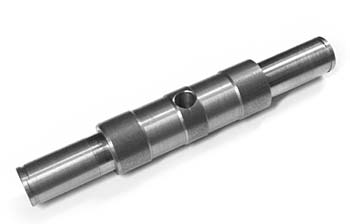

Steer Wheel Axle
Frequently Asked Questions
Q: What makes GW 419 steer wheel axle different from other GW models?
A: GW 419 is designed for heavy-duty manual pallet jacks rated above 5500 pounds. It features reinforced bearing housings and a 0.875 inch shaft diameter. Do not use GW 419 on standard 5500-pound jacks; it is heavier and creates unnecessary steering resistance.
Q: How do I diagnose if GW 419 steer wheel axle is bent?
A: Lift the pallet jack with no load and remove the steering wheel. Spin the axle by hand and watch for lateral runout at the wheel mounting surface. Runout greater than 0.0625 inches indicates bending. Bend damage is not repairable and requires full assembly replacement.
Q: What tools are required to install GW 419 steer wheel axle?
A: You need a 12-ton arbor press, axle alignment jig, socket set for 0.5 inch capscrews, torque wrench (0-50 foot-pounds range), and bearing puller if removing old bearings. Installation takes approximately 2 hours. Insufficient tooling will result in frame damage or axle misalignment.
Q: Does GW 419 require special lubrication?
A: GW 419 uses sealed ball bearings and does not require field lubrication under normal duty. For heavy continuous operation (over 8 hours daily), lubricate the frame pivot pins with light machine oil every 200 hours. Do not apply grease to the axle seal; this accelerates seal failure.
Q: What is the expected lifespan of GW 419 steer wheel axle under heavy use?
A: GW 419 typically lasts 5000 to 7000 operating hours in heavy industrial settings. Lifespan is reduced by 40 percent if the jack is used on uneven warehouse floors or rough dock surfaces. Inspect bearings every 1000 hours and replace immediately if grinding noise appears.
