Product Description

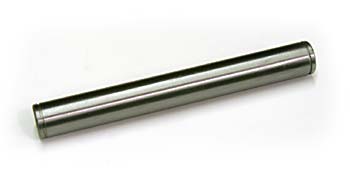

Steer Wheel Axle
Frequently Asked Questions
Q: What is the GW 428 and what type of pallet jack does it fit?
A: The GW 428 is a steer wheel axle designed for specific manual pallet jack models. Without detailed specifications, verify compatibility by comparing the axle diameter, length, and bearing hub type to your current jack assembly. Contact the pallet jack manufacturer or your parts supplier with your equipment model number and serial range to confirm GW 428 is the correct replacement.
Q: How do I verify that GW 428 is the correct axle for my pallet jack?
A: Remove the steer wheel assembly and measure the axle diameter (typically 0.5 to 0.75 inch) and overall length between bearing seats. Record these dimensions and compare against the manufacturers parts list or technical drawing for your jack model. If dimensions match, GW 428 is the correct part. Do not rely on visual similarity alone; an undersized axle will wobble, and an oversized axle will not install. When in doubt, consult your equipment manual or supplier.
Q: What tools are needed to replace the GW 428 steer wheel axle?
A: You will need a socket wrench set (typically 10 mm to 17 mm), adjustable wrench, small hammer, safety pin or cotter pin removal tool, and a container for small fasteners. If the axle is pressed into the bearing hub, a bearing puller or hydraulic press may be required, but most manual pallet jacks use slip-fit axles that do not require pressing. Gather all fasteners before disassembly; if cotter pins are damaged, replace with new ones during reassembly.
Q: Can the GW 428 be installed without removing the steer wheel frame from the jack?
A: Typically, yes, the steer wheel frame does not need complete removal. Lower the jack fully, support the frame securely with a blocking device, then access the steer wheel axle bolt. Remove the cotter pin and nut, slide the wheel assembly off the axle, and replace the GW 428. However, on some models, limited space may require partial frame removal for easier access. Work slowly and do not attempt to drive the axle out with a hammer; if it is stuck, apply penetrating oil and wait 30 minutes before trying again.
Q: What maintenance is required to extend the life of the GW 428 axle?
A: Inspect the steer wheel assembly monthly for play, binding, or grinding noise. Keep the bearing hubs clean and free of dirt; wipe with a dry cloth before each shift. Lubricate the bearing hubs lightly every 3 months with a light machine oil or lithium grease; do not over-lubricate. Do not overload the pallet jack beyond its rated capacity. Avoid parking the jack on severely uneven floors or dragging it; both conditions stress the axle and accelerate failure. Replace cotter pins if they become loose or damaged.
