Product Description

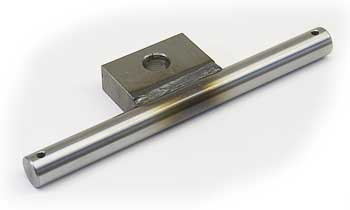

Steer Wheel Axle
Frequently Asked Questions
Q: What applications does the GW 429 steer wheel axle support?
A: The GW 429 is a steer wheel axle for manual pallet jacks and hand pallet trucks. The specific load capacity and jack model compatibility are not detailed in standard product documentation. To determine if the GW 429 is correct for your equipment, verify the model number of your pallet jack and cross-reference it against the manufacturer parts catalog. Compare the axle diameter and bearing configuration to your current assembly.
Q: Is the GW 429 interchangeable with other GW-series axles like GW 426 or GW 430?
A: No. GW-series axles are model-specific and are not interchangeable. The GW 426, GW 427, GW 428, GW 429, and GW 430 are designed for different steer wheel configurations and jack models. Installing the wrong axle will result in loose or binding wheels and unsafe steering. Always confirm your equipment documentation specifies GW 429 before ordering or installing.
Q: What is the correct replacement procedure for the GW 429 axle?
A: Lower the pallet jack fully and support the frame with a blocking device or stands to prevent tipping. Access the steer wheel assembly and locate the axle bolt on one side. Remove the cotter pin and axle nut using an appropriately sized wrench. Pull the steer wheel assembly straight off the axle. Clean the bearing surfaces, then slide the new GW 429 axle into position. Reinstall the nut and cotter pin, but do not over-tighten; the wheel must rotate freely with no binding. Test rotation by hand before loading the jack.
Q: What failure modes should prompt replacement of the GW 429 axle?
A: Replace the GW 429 if you observe the following: the steer wheel does not spin freely or binds during rotation, visible lateral movement or wobble in the wheel when the jack is lifted, audible grinding or clicking noises from the steer wheel assembly, or if the wheel is flat-spotted or permanently deformed. A bent axle cannot be straightened safely; it must be replaced. Continued operation with a damaged axle risks load drop and injury.
Q: How should the GW 429 axle be inspected during routine maintenance?
A: Inspect the GW 429 monthly as part of routine pallet jack maintenance. Visually check for signs of corrosion, discoloration, or surface damage on the axle. Spin the steer wheel by hand to verify smooth, free rotation with no resistance or noise. Look for play or wobble in the wheel assembly; if the wheel moves laterally more than 0.25 inch at the rim, the axle may be bent or the bearing hub worn. Clean the bearing surfaces with a dry cloth and apply a light coat of protective oil if exposure to moisture is high. Keep fasteners tight.
