Product Description

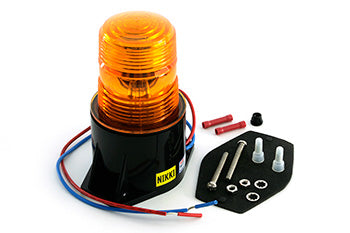

Yale OEM strobe lamp assembly featuring amber polycarbonate lens with 12-90VDC operating range. Epoxy potted circuit board provides four selectable flash patterns with reverse polarity protection. Includes AWG 18 wire leads, rubber gasket seal, and mounting hardware for forklift safety warning applications.
Specifications
Electrical
| Operating Voltage Range | 12-90VDC |
| Circuit Protection | Reverse polarity and voltage spike protected |
Part Numbers
| OEM Part Number | 580056014 |
Performance
| Flash Pattern Options | 4 selectable flash patterns |
Frequently Asked Questions
Q: What is the operating voltage range for this Yale strobe lamp?
A: This Yale OEM strobe lamp assembly operates on 12 to 90 VDC, making it compatible with both 12-volt and 24-volt electric lift truck systems as well as higher-voltage powered equipment. The wide voltage range allows use across multiple equipment platforms and voltage configurations.
Q: What electrical protections are integrated into this assembly?
A: The epoxy potted circuit board includes reverse polarity protection to prevent damage from incorrect wiring connections and voltage spike protection for industrial power supply stability. These safeguards ensure the strobe lamp operates reliably in environments with electrical transients and wiring errors.
Q: How many flash patterns are available and how do I select them?
A: This assembly provides 4 selectable flash patterns to accommodate different safety protocols and workplace visibility requirements. Flash pattern selection is typically configured at installation or through a dip switch or jumper on the circuit board depending on the specific model configuration.
Q: What are the wire and connector specifications?
A: The strobe lamp includes AWG 18 wire leads suitable for standard industrial wiring harnesses. The assembly comes with a rubber gasket seal for moisture protection and mounting hardware for secure installation on Yale forklifts and compatible material handling equipment.
Q: Is this lamp compatible with non-Yale lift trucks?
A: While this is a Yale OEM part, the 12-90 VDC operating range and standard AWG 18 leads make it compatible with other electric lift truck brands using similar voltage systems and mounting brackets. Verify your equipment voltage, mounting hole dimensions, and wire gauge compatibility before ordering.
Q: What is the expected service life for this strobe lamp assembly?
A: The amber polycarbonate lens and epoxy potted electronics typically provide 4 to 6 years of service life under normal warehouse operating conditions. Replacement is recommended when the lens becomes cloudy or discolored, flash intensity diminishes, or circuit protection features fail to engage.
