Product Description

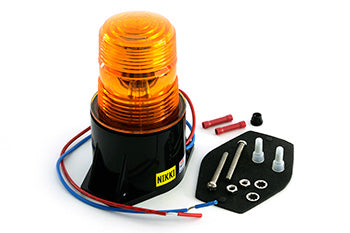

Hyster strobe light HY 1307508 is an amber xenon lamp unit engineered for heavy duty electric lift trucks, featuring a continuous duty flash rate of 85 FPM, operational voltage range from 12VDC to 80VDC, and impact-resistant polycarbonate lens for industrial safety signaling.
Specifications
Compatibility
| Compatible Equipment | Hyster electric lift trucks and material handling equipment |
Dimensional
| Mounting Pattern | 3-hole flange, 120 degree spacing |
Electrical
| Operating Voltage Range | 12VDC to 80VDC |
| Signal Output | Flashing (strobe) amber light, frequency approximately 85 FPM |
| Current Draw | ≤0.75A at 12VDC, ≤0.15A at 80VDC |
Material & Construction
| Lens Material | Polycarbonate, UV stabilized |
| Base Material | ABS thermoplastic |
Part Numbers
| OEM Part Number | HY 1307508 |
| Manufacturer Part Number | 1307508 |
Performance
| Flash Rate | 85 flashes per minute (FPM) |
| Service Life | Rated for greater than 5,000 hours continuous use |
Frequently Asked Questions
Q: What are the specifications for the Hyster HY 1307508 strobe light?
A: The HY 1307508 is an amber xenon strobe light for heavy duty electric lift trucks. It features a continuous duty flash rate of approximately 85 FPM (flashes per minute), operates across a voltage range of 12VDC to 80VDC, and has current draw specifications of 0.75A at 12VDC and 0.15A at 80VDC.
Q: What voltage range is the HY 1307508 strobe light rated for?
A: The HY 1307508 operates reliably from 12VDC to 80VDC, making it compatible with various Hyster electric lift truck configurations. Verify your equipment voltage to ensure proper operation.
Q: What is the flash rate of the HY 1307508?
A: The HY 1307508 generates amber xenon light with a continuous duty strobe flash rate of approximately 85 FPM (flashes per minute), providing reliable visual warning signals for industrial safety applications.
Q: What is the lens material on the HY 1307508?
A: The HY 1307508 features an impact-resistant polycarbonate lens designed to withstand industrial environments and heavy duty lift truck applications.
Q: How is the HY 1307508 mounted on lift trucks?
A: The HY 1307508 uses a 3-hole flange mounting pattern with 120 degree hole spacing for secure installation on Hyster lift trucks.
