Product Description

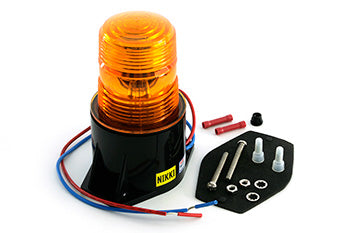

The Raymond RA 591-556-002 is a continuous-duty strobe warning lamp with amber lens, engineered for electric lift trucks in demanding warehouse environments. Rated for 10-80 VDC operation, this impact-resistant warning light provides safety visibility across Raymond's 5400, 5500, and 5600 Series equipment. The molded ABS base with polycarbonate lens resists impacts and vibration while maintaining clear warning indication. Universal mount design ensures reliable fitment on standard warning light positions, and the low current draw (0.3A at 12VDC) minimizes electrical system load.
Specifications
Compatibility
| Compatible Equipment | Raymond 5400, 5500, 5600 Series electric lift trucks |
Electrical
| Operating Voltage | 10-80 VDC nominal |
| Current Draw | Approximately 0.3A at 12VDC |
| Duty Cycle | Continuous operation, 100% duty cycle |
Material & Construction
| Base Material | Molded ABS thermoplastic |
| Lens Material | Impact-resistant polycarbonate |
| Mount Type | Universal |
Part Numbers
| Part Number | 591-556/002 |
Performance Specifications
| Service Factor | 1.00 (designed for continuous warning indication) |
Frequently Asked Questions
Q: What is the operating voltage range for the RA 591-556-002 strobe warning lamp?
A: The RA 591-556-002 operates at 10-80 VDC nominal. This wide voltage range makes it compatible with various Raymond electric lift truck models including the 5400, 5500, and 5600 Series equipment without requiring voltage regulators or step-down converters.
Q: What is the current draw of the RA 591-556-002 at 12VDC?
A: The RA 591-556-002 draws approximately 0.3A at 12VDC. This low current draw minimizes electrical system load and makes it suitable for battery-powered electric lift trucks without excessive drain on battery capacity.
Q: Is the RA 591-556-002 rated for continuous operation?
A: Yes. The RA 591-556-002 is rated for 100 percent continuous duty cycle with a 1.00 service factor. It is designed for uninterrupted warning light operation throughout the lift truck work day without thermal shutdown or performance degradation.
Q: What is the lens material and does it resist impact?
A: The RA 591-556-002 features an impact-resistant polycarbonate amber lens with a molded ABS thermoplastic base. The polycarbonate lens resists cracking from material handling impacts and debris while the ABS base provides durability in high-vibration warehouse environments.
Q: Is the RA 591-556-002 compatible with Raymond 5400, 5500, and 5600 Series equipment?
A: Yes. The RA 591-556-002 strobe warning lamp is designed as a direct fit for Raymond 5400, 5500, and 5600 Series electric lift trucks. The universal mount type allows fitment to the standard warning light locations on these models.
Q: How do I know when the RA 591-556-002 needs replacement?
A: Replace the RA 591-556-002 if the amber light does not illuminate, flashes erratically, or if the polycarbonate lens becomes cracked or excessively clouded. Test the lamp each shift before operation to ensure proper warning function.
