Product Description

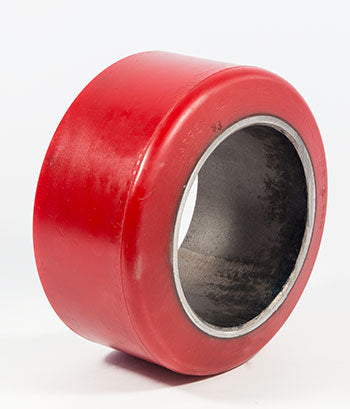

The SU 10X5X65-SF-EZ is a 10 x 5 x 6.5 inch poly press-on tire engineered for electric lift trucks. Manufactured with SPS super premium soft polyurethane on a steel base, it features 85A durometer hardness, a smooth non-marking tread, and a rated load capacity of 3190 lbs at 6 MPH. Direct equivalents include Raymond p31000500655 and Millennium Falcon 10x5x6.5EZ, providing robust chemical resistance and excellent shock absorption for indoor and cold storage warehouse applications.
Specifications: 10.000 inch diameter x 5.000 inch width (10.000" x 5.000" | 10 x 5.00 wheel | 10 x 5 | 254.00mm x 127.00mm)
Specifications
Material & Construction
| Base Material | 3/8 inch thick steel ring |
Part Numbers
| Cross-Reference Part Numbers | Raymond OEM p31000500655, Superior SU10X5X6.5EZ-MIL, Millennium Falcon 10x5x6.5EZ, may also interchange with fork lift tire part numbers for 10x5x6.5 press-on poly series |
| Equivalent Part Numbers | SU10X5X6.5EZ-MIL, p31000500655, 10X5X6.5EZ, 10X5X6.5 PO EZ TSW |
Wheel Specifications
| Outside Diameter (in) | 10.000 |
| Width (in) | 5.000 |
| Outside Diameter (mm) | 254.00 |
| Width (mm) | 127.00 |
| Drive Tire Profile | Smooth Flat |
| Material | Cushothane EZ 85A |
Frequently Asked Questions
Q: What is the difference between SU 10X5X65-SF-EZ and other 10x5x6.5 press-on tires?
A: SU 10X5X65-SF-EZ features SPS super premium soft polyurethane compound engineered to provide superior shock absorption and smooth ride quality. The EZ designation indicates Cushothane technology that resists chemical attack and provides excellent flexibility across temperature ranges. The 85A durometer hardness keeps the tire pliable in cold storage while maintaining shape and durability. Compared to standard polyurethane press-on tires, this tire offers longer operational life in temperature-variable environments and better chemical resistance for facilities with oil or cleaning agent exposure.
Q: Is SU 10X5X65-SF-EZ equivalent to Raymond p31000500655?
A: Yes. SU 10X5X65-SF-EZ is a direct equivalent to Raymond OEM part p31000500655. It is also equivalent to Superior SU10X5X6.5EZ-MIL and Millennium Falcon 10x5x6.5EZ. All these tires share the same 10.0 inch OD, 5.0 inch width, and 6.5 inch bore and are designed for identical press-on installation on Raymond and comparable lift truck models. Cross-reference your equipment manual or existing tire marking to confirm part number compatibility before ordering.
Q: What is the rated load capacity and maximum speed for SU 10X5X65-SF-EZ?
A: SU 10X5X65-SF-EZ is rated at 3190 pounds load capacity at maximum speed of 6 miles per hour. This rating applies to a four-wheel electric lift truck configuration. Do not operate the forklift at speeds exceeding 6 miles per hour or load weights exceeding 3190 pounds per tire, as this will accelerate wear and may cause tire failure. Higher speeds and loads generate heat that degrades the polyurethane compound. Always reference your equipment manual for exact operating limits and load distribution requirements.
Q: How does SU 10X5X65-SF-EZ perform in cold storage and indoor warehouse environments?
A: SU 10X5X65-SF-EZ is optimized for indoor warehouse and cold storage down to minus 15 degrees Celsius. The SPS super premium soft compound and 85A durometer remain flexible and maintain grip in low temperatures, preventing cracking and loss of traction. The tire resists oils, cleaning chemicals, and moisture better than standard polyurethane. The compound does not harden rapidly in freezer environments, which preserves tire life and performance. This tire is not recommended for outdoor yard operations or temperatures below minus 25 degrees Celsius.
Q: How often should SU 10X5X65-SF-EZ be replaced, and what are the warning signs?
A: SU 10X5X65-SF-EZ typically lasts 1500 to 3000 operational hours depending on load, speed, and facility conditions. Inspect the tire monthly for tread wear, cracks, and rubber separation from the steel core. Replace the tire when tread depth falls below 1/8 inch, visible cracks or chunks are missing from the polyurethane, or the tire separates from the base. Chemical discoloration, stickiness, or odor may indicate compound degradation and signal replacement is needed. Heavy use in oil-contaminated areas or temperature extremes will accelerate wear; monitor tires quarterly in these conditions.
Q: Is SU 10X5X65-SF-EZ a non-marking tire suitable for finished floor applications?
A: SU 10X5X65-SF-EZ is available in standard and non-marking polyurethane compound options. The standard version may leave black scuff marks or transfer residue on polished or light-colored floors. The non-marking formulation is engineered to minimize or eliminate floor marking. Specify non-marking compound when ordering if you operate in facilities with strict appearance requirements or sensitive floor surfaces. Non-marking tires may show slightly faster wear rates under identical operating conditions, so plan for more frequent replacement in high-use environments.
