Product Description

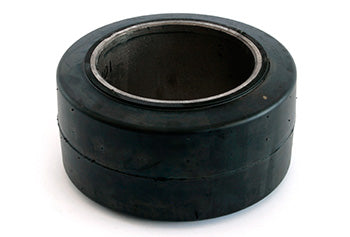

Rubber Press-On
Specifications: 10.000 inch diameter x 5.000 inch width (10.000" x 5.000" | 10 x 5.00 wheel | 10 x 5 | 254.00mm x 127.00mm)
Specifications
Wheel Specifications
| Outside Diameter (in) | 10.000 |
| Width (in) | 5.000 |
| Outside Diameter (mm) | 254.00 |
| Width (mm) | 127.00 |
| Drive Tire Profile | Smooth Flat |
| Material | Rubber |
Frequently Asked Questions
Q: What is the load capacity and recommended lift truck model compatibility for the SU 10X5X65-SF-R wheel?
A: The SU 10X5X65-SF-R is a 10 inch diameter x 5 inch width (254mm x 127mm) rubber press-on wheel designed for electric lift trucks up to 6000 lb capacity. This compact 5-inch width makes it ideal for narrow load centers and compact designs. Verify your lift truck model nameplate specifies 10x5 fitment before ordering. The rubber composition provides standard shock absorption and traction on smooth warehouse floors.
Q: Can I upgrade from the SU 10X5X65-SF-R rubber wheel to a polyurethane version on the same lift truck?
A: No. The SU 10X5X65-SF-R wheels have a 5-inch width, and most polyurethane alternatives in this 10-inch diameter come in 6-inch or 7-inch widths. Mismatched widths between front and rear wheels cause uneven load distribution and steering issues. If you need polyurethane traction, verify your truck frame can accept a wider 10x6 or 10x7 configuration, or stay with rubber press-on wheels.
Q: How do I diagnose if SU 10X5X65-SF-R wheels need replacement?
A: Check for chunking, flat spots, or sidewall cracks in the rubber. Measure tread depth with a gauge; rubber wheels below 0.25 inches lose traction and should be replaced. If the wheel separates from the hub or rocks on the axle, the press-on bond has failed and the wheel cannot be repaired. Worn wheels cause increased steering play and slower response.
Q: What tools and steps are required to replace SU 10X5X65-SF-R wheels?
A: Press-on wheels require a wheel puller tool to remove and a press or puller to reinstall. Do not hammer wheels off as this damages the axle. Remove the axle nut, use the puller to separate the wheel from the hub, and press the new wheel straight onto the axle until the hub is fully seated. Reinstall the axle nut and torque per manufacturer specs (typically 80-120 ft-lb for this size). No modification is needed if replacing with identical SU 10X5X65-SF-R units.
Q: What is the expected service life of rubber press-on wheels like the SU 10X5X65-SF-R?
A: Rubber press-on wheels typically last 12-24 months under normal warehouse use (8 hour shifts on smooth floors). Life decreases with outdoor use, rough surfaces, or sustained high-speed operation. Chemical exposure (oils, cleaners) hardens rubber and shortens life. Inspect quarterly for cracks; rotate wheel positions if only outer wheels are worn.
